SUN HYDRAULICS
DDFGXCV
$324.95 USD
- SUN HYDRAULICS
- Material:DDFGXCV
- Model:DDFG-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXCV (DDFGXCV) is a high-performance two-position, 3-way directional cartridge valve designed for robust hydraulic systems. This model, part of the T-53A cavity series 3, features six ports with port 5 unused, allowing for versatile configuration options. Each port can withstand up to 5000 psi (350 bar), catering to demanding applications. The valve offers multiple spool configurations, each affecting the capacity which reaches up to 40 gpm (160 L/min). This model requires a minimum pilot pressure of 160 psi (11 bar) to shift the valve and up to 290 psi (20 bar) for full shifting at rated flow. Designed with durability in mind, it incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. The floating style construction of the DDFGXCV minimizes internal binding due to installation torque or cavity/cartridge machining variations. Key specifications include a maximum operating pressure of 5000 psi, maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and pilot volume displacement of .13 in\u00b2 (1 cc). The valve's hex size is 1-1/4 inches (31.8 mm), with an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm). Weighing in at approximately 2.90 lbs (1.30 kg), this model uses a Viton seal kit or cartridge number 990053006 for maintenance. Ideal for systems requiring reliable directional control and high-pressure operation, the Sun Hydraulics DDFGXCV ensures consistent performance even under stringent conditions. Its design features make it suitable for applications where precision and durability are paramount.
The Sun Hydraulics DDFGXCV (DDFGXCV) is a high-performance two-position, 3-way directional cartridge valve designed for robust hydraulic systems. This model, part of the T-53A cavity series 3, features six ports with port 5 unused, allowing for versatile configuration options. Each port can withstand up to 5000 psi (350 bar), catering to demanding applications. The valve offers multiple spool configurations, each affecting the capacity which reaches up to 40 gpm (160 L/min). This model requires a minimum pilot pressure of 160 psi (11 bar) to shift the valve and up to 290 psi (20 bar) for full shifting at rated flow. Designed with durability in mind, it incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. The floating style construction of the DDFGXCV minimizes internal binding due to installation torque or cavity/cartridge machining variations. Key specifications include a maximum operating pressure of 5000 psi, maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and pilot volume displacement of .13 in\u00b2 (1 cc). The valve's hex size is 1-1/4 inches (31.8 mm), with an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm). Weighing in at approximately 2.90 lbs (1.30 kg), this model uses a Viton seal kit or cartridge number 990053006 for maintenance. Ideal for systems requiring reliable directional control and high-pressure operation, the Sun Hydraulics DDFGXCV ensures consistent performance even under stringent conditions. Its design features make it suitable for applications where precision and durability are paramount.

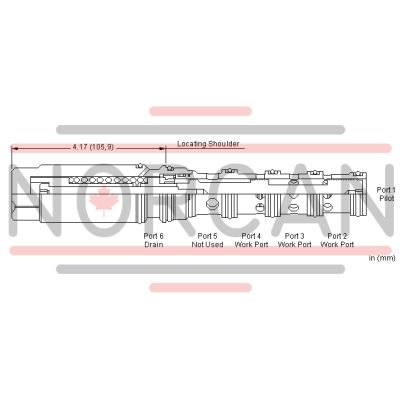

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
