SUN HYDRAULICS
DDFGXRV
$324.95 USD
- SUN HYDRAULICS
- Material:DDFGXRV
- Model:DDFG-XRV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXRV (DDFGXRV) is a two-position, 3-way directional cartridge valve, distinguished by its versatile configuration options with up to five different spool configurations. This valve features a unique six-port design, although port 5 is not utilized in operations. It is designed to handle a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure applications. Each port in this model can accommodate the same high-pressure level, which enhances its adaptability across various hydraulic systems. The DDFGXRV valve boasts a capacity of 40 gpm (160 L/min), with specific pilot pressure requirements for shifting and achieving full shift at rated flow\u2014160 psi (11 bar) and 290 psi (20 bar), respectively. The construction includes a hardened spool and sleeve which not only reduces spool leakage rates but also ensures excellent wear characteristics over time. This durability is further supported by Sun's floating style construction that minimizes internal parts binding, which could otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This model also features a maximum valve leakage rate at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The pilot volume displacement stands at .13 in\u00b2 (1 cc), and the installation requires a specific torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). With its robust build and precise engineering, the DDFGXRV valve ensures reliable performance and efficient control in hydraulic systems requiring precise directional control capabilities.
The Sun Hydraulics DDFGXRV (DDFGXRV) is a two-position, 3-way directional cartridge valve, distinguished by its versatile configuration options with up to five different spool configurations. This valve features a unique six-port design, although port 5 is not utilized in operations. It is designed to handle a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure applications. Each port in this model can accommodate the same high-pressure level, which enhances its adaptability across various hydraulic systems. The DDFGXRV valve boasts a capacity of 40 gpm (160 L/min), with specific pilot pressure requirements for shifting and achieving full shift at rated flow\u2014160 psi (11 bar) and 290 psi (20 bar), respectively. The construction includes a hardened spool and sleeve which not only reduces spool leakage rates but also ensures excellent wear characteristics over time. This durability is further supported by Sun's floating style construction that minimizes internal parts binding, which could otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This model also features a maximum valve leakage rate at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The pilot volume displacement stands at .13 in\u00b2 (1 cc), and the installation requires a specific torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). With its robust build and precise engineering, the DDFGXRV valve ensures reliable performance and efficient control in hydraulic systems requiring precise directional control capabilities.

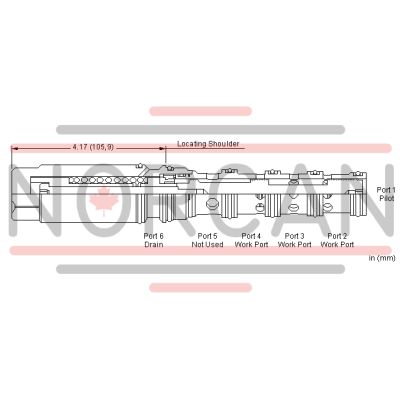

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
