SUN HYDRAULICS
DDFGXZV
$333.88 USD
- SUN HYDRAULICS
- Material:DDFGXZV
- Model:DDFG-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXZV (DDFGXZV) is a high-performance directional cartridge valve, specifically designed for robust hydraulic system applications. This two-position, 3-way directional cartridge features a unique 6-port configuration, although port 5 is not utilized. It offers versatile spool configurations, allowing up to five different setups based on the operational requirements. The valve operates with a maximum capacity of 40 gpm (160 L/min) and can handle an impressive maximum operating pressure of 5000 psi (350 bar). Engineered for precision and durability, the DDFGXZV incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. This model benefits from Sun Hydraulics' floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The design specifics cater to efficient operation with minimal pilot pressure required to shift the valve at 160 psi (11 bar), and full shift capability at the rated flow with a pilot pressure of 290 psi (20 bar). The DDFGXZV is also designed for ease of installation and maintenance, featuring a valve hex size of 1-1/4 in. (31.8 mm) and an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). Its compact design results in a modest weight of approximately 2.90 lb (1.30 kg), making it suitable for various hydraulic systems without adding significant bulk. Overall, the Sun Hydraulics DDFGXZV offers reliability and adaptability for systems requiring precise control over fluid direction under high-pressure conditions, ensuring efficient operation across various hydraulic applications.
The Sun Hydraulics DDFGXZV (DDFGXZV) is a high-performance directional cartridge valve, specifically designed for robust hydraulic system applications. This two-position, 3-way directional cartridge features a unique 6-port configuration, although port 5 is not utilized. It offers versatile spool configurations, allowing up to five different setups based on the operational requirements. The valve operates with a maximum capacity of 40 gpm (160 L/min) and can handle an impressive maximum operating pressure of 5000 psi (350 bar). Engineered for precision and durability, the DDFGXZV incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. This model benefits from Sun Hydraulics' floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The design specifics cater to efficient operation with minimal pilot pressure required to shift the valve at 160 psi (11 bar), and full shift capability at the rated flow with a pilot pressure of 290 psi (20 bar). The DDFGXZV is also designed for ease of installation and maintenance, featuring a valve hex size of 1-1/4 in. (31.8 mm) and an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). Its compact design results in a modest weight of approximately 2.90 lb (1.30 kg), making it suitable for various hydraulic systems without adding significant bulk. Overall, the Sun Hydraulics DDFGXZV offers reliability and adaptability for systems requiring precise control over fluid direction under high-pressure conditions, ensuring efficient operation across various hydraulic applications.

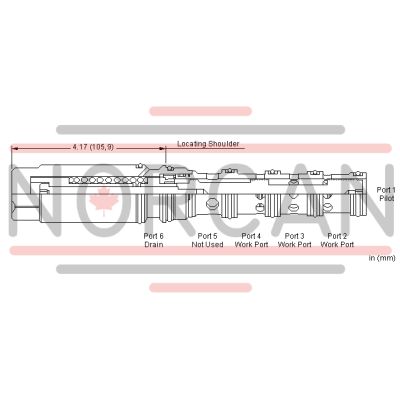

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
