SUN HYDRAULICS
DDHGXON
$570.36 USD
- SUN HYDRAULICS
- Material:DDHGXON
- Model:DDHG-XON
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDHGXON (DDHGXON) is a high-performance, two-position, 3-way directional cartridge valve that offers versatile configuration options with up to five different spool configurations. This robust valve is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports, making it suitable for demanding hydraulic applications. The DDHGXON features a unique floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and longevity of the valve under various operational conditions. The valve's capacity is rated at 80 gpm (320 L/min), and it requires a minimum pilot pressure of 300 psi (20 bar) to shift, with full shifting at rated flow achieved at 350 psi (24 bar). The hardened spool and sleeve are engineered to provide low spool leakage rates and excellent wear characteristics, ensuring consistent performance throughout its service life. Additionally, the valve incorporates a maximum valve leakage specification at 110 SUS (24 cSt) of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar), which speaks to its efficiency in maintaining system integrity. Sun Hydraulics has equipped the DDHGXON with a pilot volume displacement of .27 in\u00b3 (4.4 cc), and it features an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The physical dimensions include a hex size of 1-5/8 inches (41.3 mm) and a weight of approximately 5.9 lbs (2.7 kg), making it compact yet robust for industrial applications. This directional cartridge is an ideal choice for systems requiring precise control over fluid direction and pressure, providing reliable operation even under high-pressure conditions.
The Sun Hydraulics DDHGXON (DDHGXON) is a high-performance, two-position, 3-way directional cartridge valve that offers versatile configuration options with up to five different spool configurations. This robust valve is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports, making it suitable for demanding hydraulic applications. The DDHGXON features a unique floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and longevity of the valve under various operational conditions. The valve's capacity is rated at 80 gpm (320 L/min), and it requires a minimum pilot pressure of 300 psi (20 bar) to shift, with full shifting at rated flow achieved at 350 psi (24 bar). The hardened spool and sleeve are engineered to provide low spool leakage rates and excellent wear characteristics, ensuring consistent performance throughout its service life. Additionally, the valve incorporates a maximum valve leakage specification at 110 SUS (24 cSt) of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar), which speaks to its efficiency in maintaining system integrity. Sun Hydraulics has equipped the DDHGXON with a pilot volume displacement of .27 in\u00b3 (4.4 cc), and it features an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The physical dimensions include a hex size of 1-5/8 inches (41.3 mm) and a weight of approximately 5.9 lbs (2.7 kg), making it compact yet robust for industrial applications. This directional cartridge is an ideal choice for systems requiring precise control over fluid direction and pressure, providing reliable operation even under high-pressure conditions.

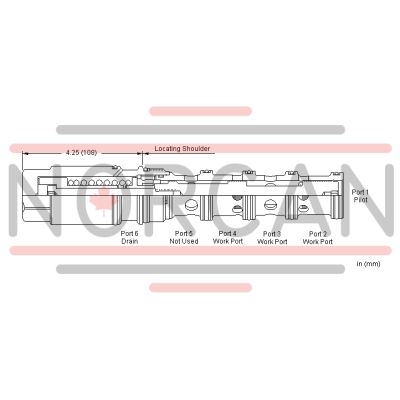

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-54A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Pilot Volume Displacement | .27 in³4,4 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 5.9 lb2,7 kg |
| Seal kit - Cartridge | Viton: 990-054-006 |
