SUN HYDRAULICS
DDHGXRN
$570.36 USD
- SUN HYDRAULICS
- Material:DDHGXRN
- Model:DDHG-XRN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDHGXRN (DDHGXRN) is a high-performance two-position, 3-way directional cartridge valve featuring six ports, although port 5 remains unused. This versatile valve can be configured in up to five different spool configurations to suit various application needs. It is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports, with port 3 designated as the supply port. The capacity of these pilot-to-shift valves varies depending on the specified spool type, supporting up to 80 gpm (320 L/min). The DDHGXRN incorporates Sun Hydraulics' floating style construction which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature, coupled with a hardened spool and sleeve, ensures low leakage rates and excellent wear characteristics for consistent performance and extended valve life. The leakage for each path is specifically noted in the technical data provided by Sun Hydraulics. For operation, this model requires a minimum pilot pressure of 300 psi (20 bar) to shift the valve and 350 psi (24 bar) for a full shift at rated flow. It offers a maximum valve leakage rate at 110 SUS (24 cSt) of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). The valve's hex size is 1-5/8 inches (41.3 mm), and it requires an installation torque between 350 -375 lbf-ft (474 -508 Nm). The overall weight of the model is approximately 5.9 lb (2.7 kg), and it uses Viton seals for enhanced durability under various operating conditions.
The Sun Hydraulics DDHGXRN (DDHGXRN) is a high-performance two-position, 3-way directional cartridge valve featuring six ports, although port 5 remains unused. This versatile valve can be configured in up to five different spool configurations to suit various application needs. It is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports, with port 3 designated as the supply port. The capacity of these pilot-to-shift valves varies depending on the specified spool type, supporting up to 80 gpm (320 L/min). The DDHGXRN incorporates Sun Hydraulics' floating style construction which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature, coupled with a hardened spool and sleeve, ensures low leakage rates and excellent wear characteristics for consistent performance and extended valve life. The leakage for each path is specifically noted in the technical data provided by Sun Hydraulics. For operation, this model requires a minimum pilot pressure of 300 psi (20 bar) to shift the valve and 350 psi (24 bar) for a full shift at rated flow. It offers a maximum valve leakage rate at 110 SUS (24 cSt) of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). The valve's hex size is 1-5/8 inches (41.3 mm), and it requires an installation torque between 350 -375 lbf-ft (474 -508 Nm). The overall weight of the model is approximately 5.9 lb (2.7 kg), and it uses Viton seals for enhanced durability under various operating conditions.

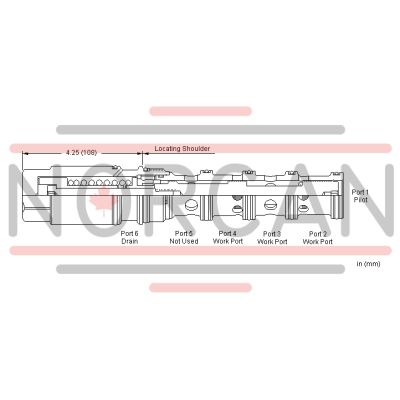

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-54A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Pilot Volume Displacement | .27 in³4,4 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 5.9 lb2,7 kg |
| Seal kit - Cartridge | Viton: 990-054-006 |
