SUN HYDRAULICS
DDHGXYN
$579.30 USD
- SUN HYDRAULICS
- Material:DDHGXYN
- Model:DDHG-XYN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDHGXYN (DDHGXYN) is a two-position, 3-way directional cartridge valve distinguished by its robust design and versatile performance characteristics, suitable for high-pressure hydraulic systems. This model features a unique six-port configuration where port 5 remains unused, and it can accommodate up to five different spool configurations. Each spool type specified influences the capacity of these pilot-to-shift valves, which are crucial for controlling fluid direction in hydraulic circuits. The DDHGXYN operates with a maximum capacity of 80 gpm (320 L/min) and can handle an operating pressure up to 5000 psi (350 bar). It requires a minimum pilot pressure of 300 psi (20 bar) to shift the valve and 350 psi (24 bar) for a full shift at rated flow. The model's design includes a hardened spool and sleeve that ensure low leakage rates, consistent performance, and excellent wear characteristics over time. Additionally, the valve incorporates Sun\u2019s floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances reliability and longevity in demanding operational environments. The valve\u2019s leakage specification per path is meticulously detailed in its technical data to ensure precise fluid control. With dimensions including a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range of 350-375 lbf-ft (474-508 Nm), the DDHGXYN weighs approximately 5.9 lb (2.7 kg). It also supports Viton seals through the seal kit/cartridge Viton: 990054006, enhancing its compatibility with various hydraulic fluids and operational conditions. This model is engineered for efficiency and durability in complex hydraulic setups requiring precise directional control and high-pressure tolerance.
The Sun Hydraulics DDHGXYN (DDHGXYN) is a two-position, 3-way directional cartridge valve distinguished by its robust design and versatile performance characteristics, suitable for high-pressure hydraulic systems. This model features a unique six-port configuration where port 5 remains unused, and it can accommodate up to five different spool configurations. Each spool type specified influences the capacity of these pilot-to-shift valves, which are crucial for controlling fluid direction in hydraulic circuits. The DDHGXYN operates with a maximum capacity of 80 gpm (320 L/min) and can handle an operating pressure up to 5000 psi (350 bar). It requires a minimum pilot pressure of 300 psi (20 bar) to shift the valve and 350 psi (24 bar) for a full shift at rated flow. The model's design includes a hardened spool and sleeve that ensure low leakage rates, consistent performance, and excellent wear characteristics over time. Additionally, the valve incorporates Sun\u2019s floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances reliability and longevity in demanding operational environments. The valve\u2019s leakage specification per path is meticulously detailed in its technical data to ensure precise fluid control. With dimensions including a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range of 350-375 lbf-ft (474-508 Nm), the DDHGXYN weighs approximately 5.9 lb (2.7 kg). It also supports Viton seals through the seal kit/cartridge Viton: 990054006, enhancing its compatibility with various hydraulic fluids and operational conditions. This model is engineered for efficiency and durability in complex hydraulic setups requiring precise directional control and high-pressure tolerance.

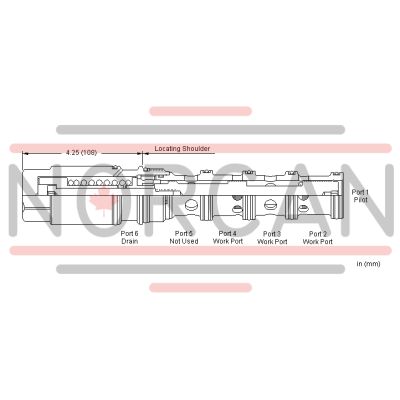

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-54A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Pilot Volume Displacement | .27 in³4,4 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 5.9 lb2,7 kg |
| Seal kit - Cartridge | Viton: 990-054-006 |
