SUN HYDRAULICS
DDHGXZV
$590.22 USD
- SUN HYDRAULICS
- Material:DDHGXZV
- Model:DDHG-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDHGXZV (DDHGXZV) is a two-position, 3-way directional cartridge valve distinguished by its robust design and high-pressure capabilities. This model features six ports, although port 5 is unused, allowing for versatile plumbing configurations. The valve can handle a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 80 gpm (320 L/min). Designed for pilot-to-shift operation, the minimum pilot pressure required to shift the valve is 300 psi (20 bar), with full shifting at rated flow requiring 350 psi (24 bar). The DDHGXZV incorporates hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in hydraulic systems. The innovative Sun floating style construction minimizes internal parts binding, which can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and performance consistency of the valve under varied operational conditions. Additionally, this model uses Viton seals (part number: 990054006), known for their excellent resistance to high temperatures and chemicals, further ensuring the durability and tight sealing of the valve assembly. The valve's hex size is 1-5/8 inches (41.3 mm), and it requires an installation torque of between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 5.9 lbs (2.7 kg), the DDHGXZV offers a compact yet powerful solution for directing fluid flow in hydraulic systems efficiently.
The Sun Hydraulics DDHGXZV (DDHGXZV) is a two-position, 3-way directional cartridge valve distinguished by its robust design and high-pressure capabilities. This model features six ports, although port 5 is unused, allowing for versatile plumbing configurations. The valve can handle a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 80 gpm (320 L/min). Designed for pilot-to-shift operation, the minimum pilot pressure required to shift the valve is 300 psi (20 bar), with full shifting at rated flow requiring 350 psi (24 bar). The DDHGXZV incorporates hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in hydraulic systems. The innovative Sun floating style construction minimizes internal parts binding, which can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and performance consistency of the valve under varied operational conditions. Additionally, this model uses Viton seals (part number: 990054006), known for their excellent resistance to high temperatures and chemicals, further ensuring the durability and tight sealing of the valve assembly. The valve's hex size is 1-5/8 inches (41.3 mm), and it requires an installation torque of between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 5.9 lbs (2.7 kg), the DDHGXZV offers a compact yet powerful solution for directing fluid flow in hydraulic systems efficiently.

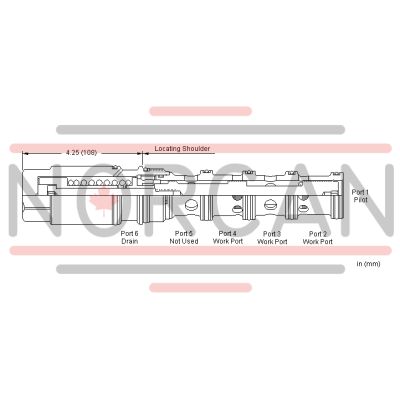

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-54A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Pilot Volume Displacement | .27 in³4,4 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 5.9 lb2,7 kg |
| Seal kit - Cartridge | Viton: 990-054-006 |
