SUN HYDRAULICS
DKHPLWN
$295.85 USD
- SUN HYDRAULICS
- Material:DKHPLWN
- Model:DKHP-LWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DKHPLWN (DKHPLWN) is a high-performance hydraulic valve designed for precise control in fluid power applications. This normally closed, balanced poppet switching element operates efficiently with a maximum operating pressure of 5000 psi (350 bar) and a capacity of 60 gpm (240 L/min). The valve features an integral pilot relief stage, which allows the poppet to shift to the open position once pilot pressure at port 3 surpasses a pre-set threshold. This model ensures minimal leakage, typically less than 10 drops per minute at 5000 psi, thanks to its unique balanced construction which also prevents internal parts binding due to installation torque or cavity/cartridge machining variations. It incorporates Sun\u2019s floating style construction enhancing its operational reliability and durability. The DKHPLWN is equipped with four ports; ports 1 and 2 are fully sealed against ports 3 and 4, ensuring no cross-port contamination. The valve's design also accounts for any backpressure at the drain port being directly additive to the valve setting, thereby maintaining consistent performance. A notable feature is that it will reseat when the pilot pressure falls to 85% of the cracking value. For installation, this valve requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150-160 lbf ft (203-217 Nm). It supports a minimum pilot pressure required to shift the valve at 300 psi (20 bar), making it versatile for various hydraulic systems needing precise flow control under high-pressure conditions.
The Sun Hydraulics DKHPLWN (DKHPLWN) is a high-performance hydraulic valve designed for precise control in fluid power applications. This normally closed, balanced poppet switching element operates efficiently with a maximum operating pressure of 5000 psi (350 bar) and a capacity of 60 gpm (240 L/min). The valve features an integral pilot relief stage, which allows the poppet to shift to the open position once pilot pressure at port 3 surpasses a pre-set threshold. This model ensures minimal leakage, typically less than 10 drops per minute at 5000 psi, thanks to its unique balanced construction which also prevents internal parts binding due to installation torque or cavity/cartridge machining variations. It incorporates Sun\u2019s floating style construction enhancing its operational reliability and durability. The DKHPLWN is equipped with four ports; ports 1 and 2 are fully sealed against ports 3 and 4, ensuring no cross-port contamination. The valve's design also accounts for any backpressure at the drain port being directly additive to the valve setting, thereby maintaining consistent performance. A notable feature is that it will reseat when the pilot pressure falls to 85% of the cracking value. For installation, this valve requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150-160 lbf ft (203-217 Nm). It supports a minimum pilot pressure required to shift the valve at 300 psi (20 bar), making it versatile for various hydraulic systems needing precise flow control under high-pressure conditions.

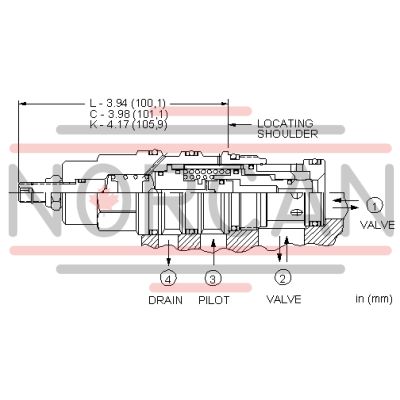

This is a normally closed, balanced poppet, switching element. When pilot pressure is applied to port 3, the poppet remains closed until the pilot pressure reaches the setting established by the integral pilot relief stage, at which point the poppet shifts to the open position.
- Unique balanced construction provides predictable switching with 5000 psi (350 bar) at both port 1 and port 2. When the remote pressure signal at port 3 exceeds the internal valve setting, the valve shifts to the open position.
- Any backpressure at the drain port is directly additive to the valve setting.
- Valve will reseat when the pilot pressure falls to 85% of the cracking value.
- Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
- Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | See Performance DataSee Performance Data |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Seal kit - Cartridge | Viton: 990-023-006 |
