SUN HYDRAULICS
DLDMDCN
$113.38 USD
- SUN HYDRAULICS
- Material:DLDMDCN
- Model:DLDM-DCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

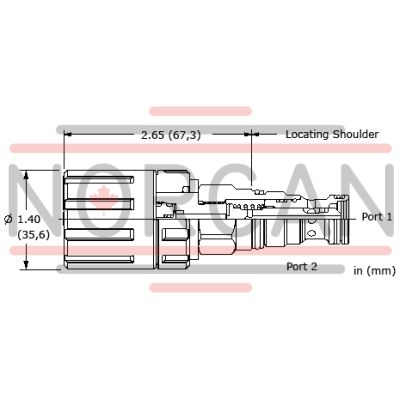

The Sun Hydraulics DLDMDCN (DLDMDCN) is a manually operated, 2-position, 2-way directional cartridge valve. It functions as a direct-acting, balanced spool valve intended primarily for controlling the direction of flow in hydraulic circuits. The valve's design incorporates Sun's TwistLock manual override mechanism, suitable for intermittent and infrequent manual operation. This model offers a variety of operational modes including momentary-twist control (option T), which allows for temporary shifting by twisting the knob clockwise; detent-lock control (option L), enabling the valve to remain in a detented position until manually adjusted; and dual-operation control (option D), combining both momentary and detented capabilities. The DLDMDCN is built for durability with a mechanical life expectancy of approximately 7,000 cycles. It is engineered to handle a maximum flow capacity of 12 gpm (45 L/min) and can operate under pressures up to 5000 psi (350 bar). Its operational torque requirement is modest at around 10 lbf\u00b7in (1.2 Nm). The valve features a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Additionally, it utilizes Viton seals for enhanced performance under varying conditions. Notably designed with Sun\u2019s floating style construction, the DLDMDCN minimizes potential internal binding that could result from excessive installation torque or variations in cavity/cartridge machining. This ensures more reliable operation and longevity of the component within hydraulic systems. The manual control must be operated directly by hand without modifications or mechanical assistance to maintain safety and functionality as intended by design specifications.
The Sun Hydraulics DLDMDCN (DLDMDCN) is a manually operated, 2-position, 2-way directional cartridge valve. It functions as a direct-acting, balanced spool valve intended primarily for controlling the direction of flow in hydraulic circuits. The valve's design incorporates Sun's TwistLock manual override mechanism, suitable for intermittent and infrequent manual operation. This model offers a variety of operational modes including momentary-twist control (option T), which allows for temporary shifting by twisting the knob clockwise; detent-lock control (option L), enabling the valve to remain in a detented position until manually adjusted; and dual-operation control (option D), combining both momentary and detented capabilities. The DLDMDCN is built for durability with a mechanical life expectancy of approximately 7,000 cycles. It is engineered to handle a maximum flow capacity of 12 gpm (45 L/min) and can operate under pressures up to 5000 psi (350 bar). Its operational torque requirement is modest at around 10 lbf\u00b7in (1.2 Nm). The valve features a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Additionally, it utilizes Viton seals for enhanced performance under varying conditions. Notably designed with Sun\u2019s floating style construction, the DLDMDCN minimizes potential internal binding that could result from excessive installation torque or variations in cavity/cartridge machining. This ensures more reliable operation and longevity of the component within hydraulic systems. The manual control must be operated directly by hand without modifications or mechanical assistance to maintain safety and functionality as intended by design specifications.
This manually operated, 2-position, 2-way directional cartridge is a direct-acting, balanced spool valve used to control the direction of flow in a hydraulic circuit. The valve is available in either a normally open or normally closed configuration. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-413-006 |
