SUN HYDRAULICS
DLDMLCV
$119.83 USD
- SUN HYDRAULICS
- Material:DLDMLCV
- Model:DLDM-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

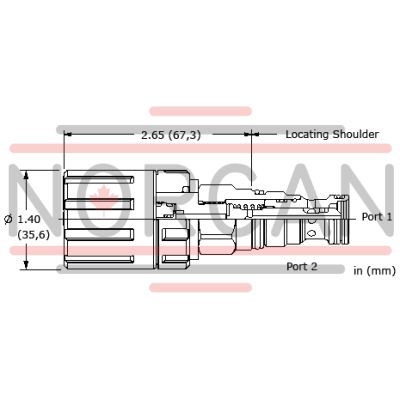

The Sun Hydraulics DLDMLCV (DLDMLCV) is a manually operated, 2-position, 2-way directional cartridge valve that effectively controls the direction of flow in hydraulic circuits. This direct-acting, balanced spool valve is available in configurations of normally open or normally closed. It incorporates Sun's TwistLock manual override mechanism, designed specifically for intermittent and infrequent use. The DLDMLCV offers multiple control options: the momentary-twist control (option T), which allows temporary shifting of the valve by twisting the knob clockwise; the detent-lock control (option L), which enables shifting into a mechanically detented position by twisting the knob counterclockwise; and the dual-operation control (option D), combining both functionalities. This valve is engineered with a mechanical life expectancy of around 7,000 cycles and is built to handle maximum flow rates up to 12 gpm (45 L/min) and pressures up to 5000 psi (350 bar). Key specifications include an operating torque of 10 lbf in. (1.2 Nm), a hex size for the valve at 7/8 in. (22.2 mm), and an installation torque requirement between 30-35 lbf ft (41-47 Nm). The design uses Sun's floating style construction to minimize internal binding due to installation torque or variations in cavity/cartridge machining. The DLDMLCV should be manually operated only and not modified or mechanically automated under any circumstances, ensuring safe and intended operation within hydraulic systems. This product does not support load-holding applications but is ideal for temporary shifting needs within its operational limits.
The Sun Hydraulics DLDMLCV (DLDMLCV) is a manually operated, 2-position, 2-way directional cartridge valve that effectively controls the direction of flow in hydraulic circuits. This direct-acting, balanced spool valve is available in configurations of normally open or normally closed. It incorporates Sun's TwistLock manual override mechanism, designed specifically for intermittent and infrequent use. The DLDMLCV offers multiple control options: the momentary-twist control (option T), which allows temporary shifting of the valve by twisting the knob clockwise; the detent-lock control (option L), which enables shifting into a mechanically detented position by twisting the knob counterclockwise; and the dual-operation control (option D), combining both functionalities. This valve is engineered with a mechanical life expectancy of around 7,000 cycles and is built to handle maximum flow rates up to 12 gpm (45 L/min) and pressures up to 5000 psi (350 bar). Key specifications include an operating torque of 10 lbf in. (1.2 Nm), a hex size for the valve at 7/8 in. (22.2 mm), and an installation torque requirement between 30-35 lbf ft (41-47 Nm). The design uses Sun's floating style construction to minimize internal binding due to installation torque or variations in cavity/cartridge machining. The DLDMLCV should be manually operated only and not modified or mechanically automated under any circumstances, ensuring safe and intended operation within hydraulic systems. This product does not support load-holding applications but is ideal for temporary shifting needs within its operational limits.
This manually operated, 2-position, 2-way directional cartridge is a direct-acting, balanced spool valve used to control the direction of flow in a hydraulic circuit. The valve is available in either a normally open or normally closed configuration. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-413-006 |
