SUN HYDRAULICS
DLDMTCN
$113.38 USD
- SUN HYDRAULICS
- Material:DLDMTCN
- Model:DLDM-TCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

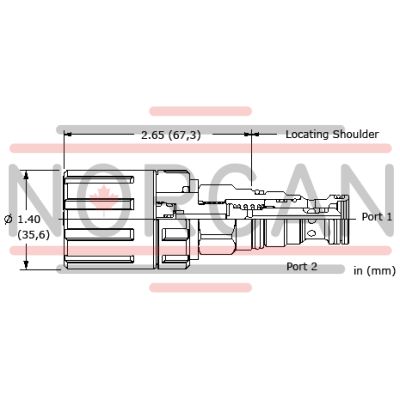

The Sun Hydraulics DLDMTCN (DLDMTCN) is a manually operated, 2-position, 2-way directional cartridge valve designed for controlling the direction of flow in hydraulic circuits. This direct-acting, balanced spool valve can be configured as normally open or normally closed. It features Sun's TwistLock manual override mechanism intended for intermittent and infrequent use. The valve incorporates a floating style construction to minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. With a capacity of 12 gpm (45 L/min) and a maximum operating pressure of 5000 psi (350 bar), the DLDMTCN is robust enough for various applications requiring manual flow direction control. The valve offers multiple control options: momentary-twist (option T), detent-lock (option L), and dual-operation (option D). These allow for temporary shifting of the valve either by twisting the knob clockwise for momentary control or counterclockwise for mechanically detented positions. It's crucial to note that these detented positions are not intended for load holding but only for temporary shifting. The manual control assembly is designed with a mechanical life expectancy of approximately 7,000 cycles, ensuring durability and reliability in its operations. The operating torque required is about 10 lbf\u00b7in (1.2 Nm), with an installation torque range between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Additionally, this model uses Viton seals (part number: 990413006) to maintain its integrity under various operational conditions. The DLDMTCN\u2019s design emphasizes manual operation by hand without modifications such as attaching levers or using mechanical devices, preserving safety and functionality.
The Sun Hydraulics DLDMTCN (DLDMTCN) is a manually operated, 2-position, 2-way directional cartridge valve designed for controlling the direction of flow in hydraulic circuits. This direct-acting, balanced spool valve can be configured as normally open or normally closed. It features Sun's TwistLock manual override mechanism intended for intermittent and infrequent use. The valve incorporates a floating style construction to minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. With a capacity of 12 gpm (45 L/min) and a maximum operating pressure of 5000 psi (350 bar), the DLDMTCN is robust enough for various applications requiring manual flow direction control. The valve offers multiple control options: momentary-twist (option T), detent-lock (option L), and dual-operation (option D). These allow for temporary shifting of the valve either by twisting the knob clockwise for momentary control or counterclockwise for mechanically detented positions. It's crucial to note that these detented positions are not intended for load holding but only for temporary shifting. The manual control assembly is designed with a mechanical life expectancy of approximately 7,000 cycles, ensuring durability and reliability in its operations. The operating torque required is about 10 lbf\u00b7in (1.2 Nm), with an installation torque range between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Additionally, this model uses Viton seals (part number: 990413006) to maintain its integrity under various operational conditions. The DLDMTCN\u2019s design emphasizes manual operation by hand without modifications such as attaching levers or using mechanical devices, preserving safety and functionality.
This manually operated, 2-position, 2-way directional cartridge is a direct-acting, balanced spool valve used to control the direction of flow in a hydraulic circuit. The valve is available in either a normally open or normally closed configuration. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-413-006 |
