SUN HYDRAULICS
DMDMLAV
$127.08 USD
- SUN HYDRAULICS
- Material:DMDMLAV
- Model:DMDM-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DMDMLAV (DMDMLAV) is a manually operated, 2-position, 3-way directional cartridge valve designed for hydraulic circuit control. This direct-acting, balanced spool valve offers manual operation through Sun's TwistLock manual override mechanism, suitable specifically for intermittent and infrequent use. The valve features several operational modes to suit different application needs: the momentary-twist control option (T) allows temporary shifting of the valve by twisting the knob clockwise; the detent-lock control option (L) enables shifting into a mechanically detented position by twisting counterclockwise; and the dual-operation control option (D) combines both functionalities. Constructed with Sun's floating style design, the DMDMLAV minimizes internal part binding that could arise from excessive installation torque or cavity/cartridge machining variations. It has a mechanical life expectancy of around 7,000 cycles and is built to handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 12 gpm (45 L/min). The valve ensures minimal leakage at high pressures and operates with an approximate torque requirement of 10 lbf\u00b7in. Installation requires specific attention to torque settings between 30 - 35 lbf\u00b7ft to maintain optimal performance and longevity. This product is engineered with precision to ensure reliability in its designated applications, particularly where manual override of hydraulic flow direction is necessary but not frequently required. It should not be modified for use with mechanical devices or used in load-holding applications due to its design for temporary shifting only.
The Sun Hydraulics DMDMLAV (DMDMLAV) is a manually operated, 2-position, 3-way directional cartridge valve designed for hydraulic circuit control. This direct-acting, balanced spool valve offers manual operation through Sun's TwistLock manual override mechanism, suitable specifically for intermittent and infrequent use. The valve features several operational modes to suit different application needs: the momentary-twist control option (T) allows temporary shifting of the valve by twisting the knob clockwise; the detent-lock control option (L) enables shifting into a mechanically detented position by twisting counterclockwise; and the dual-operation control option (D) combines both functionalities. Constructed with Sun's floating style design, the DMDMLAV minimizes internal part binding that could arise from excessive installation torque or cavity/cartridge machining variations. It has a mechanical life expectancy of around 7,000 cycles and is built to handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 12 gpm (45 L/min). The valve ensures minimal leakage at high pressures and operates with an approximate torque requirement of 10 lbf\u00b7in. Installation requires specific attention to torque settings between 30 - 35 lbf\u00b7ft to maintain optimal performance and longevity. This product is engineered with precision to ensure reliability in its designated applications, particularly where manual override of hydraulic flow direction is necessary but not frequently required. It should not be modified for use with mechanical devices or used in load-holding applications due to its design for temporary shifting only.
This manually operated, 2-position, 3-way directional cartridge is a direct-acting, balanced spool valve used to control the direction of flow in a hydraulic circuit. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

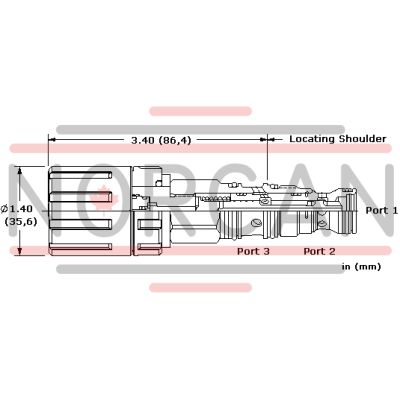

| Cavity | T-11A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-411-006 |
