SUN HYDRAULICS
DMDMTPN
$125.10 USD
- SUN HYDRAULICS
- Material:DMDMTPN
- Model:DMDM-TPN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DMDMTPN (DMDMTPN) is a manually operated, 2-position, 3-way directional cartridge valve designed for hydraulic circuit control. This direct-acting, balanced spool valve features Sun's TwistLock manual override mechanism, suitable primarily for intermittent and infrequent operation. The valve offers three control options: momentary-twist (T), detent-lock (L), and dual-operation (D). The momentary-twist allows for temporary shifting by twisting the knob clockwise; upon release, the valve returns to its original position. The detent-lock option enables shifting into a mechanically detented position by twisting the knob counterclockwise, which holds until manually reverted. The dual-operation combines both functionalities. This model is engineered with a mechanical life expectancy of about 7,000 cycles and incorporates Sun\u2019s floating style construction to minimize internal binding due to installation torque or machining variations. Key specifications include a flow capacity of 12 gpm (45 L/min), maximum operating pressure of 5000 psi (350 bar), and an operating torque of approximately 10 lbf\u00b7in (1.2 Nm). It fits into a T11A cavity with an installation torque requirement between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and uses Viton seals for enhanced performance under varying conditions. The DMDMTPN is particularly noted for its robust construction and reliability in manual control applications within hydraulic systems where temporary or emergency control is necessary. Its design ensures it is only operated manually via hand and not adapted for mechanical device operations or permanent load holding applications, ensuring safety and adherence to operational standards.
The Sun Hydraulics DMDMTPN (DMDMTPN) is a manually operated, 2-position, 3-way directional cartridge valve designed for hydraulic circuit control. This direct-acting, balanced spool valve features Sun's TwistLock manual override mechanism, suitable primarily for intermittent and infrequent operation. The valve offers three control options: momentary-twist (T), detent-lock (L), and dual-operation (D). The momentary-twist allows for temporary shifting by twisting the knob clockwise; upon release, the valve returns to its original position. The detent-lock option enables shifting into a mechanically detented position by twisting the knob counterclockwise, which holds until manually reverted. The dual-operation combines both functionalities. This model is engineered with a mechanical life expectancy of about 7,000 cycles and incorporates Sun\u2019s floating style construction to minimize internal binding due to installation torque or machining variations. Key specifications include a flow capacity of 12 gpm (45 L/min), maximum operating pressure of 5000 psi (350 bar), and an operating torque of approximately 10 lbf\u00b7in (1.2 Nm). It fits into a T11A cavity with an installation torque requirement between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and uses Viton seals for enhanced performance under varying conditions. The DMDMTPN is particularly noted for its robust construction and reliability in manual control applications within hydraulic systems where temporary or emergency control is necessary. Its design ensures it is only operated manually via hand and not adapted for mechanical device operations or permanent load holding applications, ensuring safety and adherence to operational standards.
This manually operated, 2-position, 3-way directional cartridge is a direct-acting, balanced spool valve used to control the direction of flow in a hydraulic circuit. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

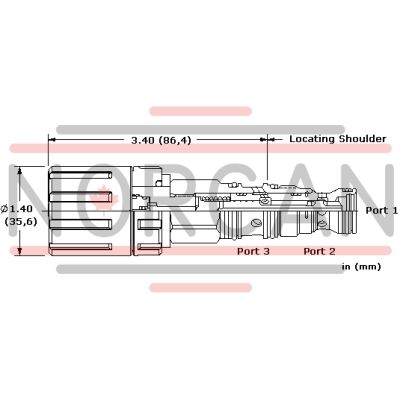

| Cavity | T-11A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-411-006 |
