SUN HYDRAULICS
DNDYTXV298
$345.69 USD
- SUN HYDRAULICS
- Material:DNDYTXV298
- Model:DNDY-TXV@298
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

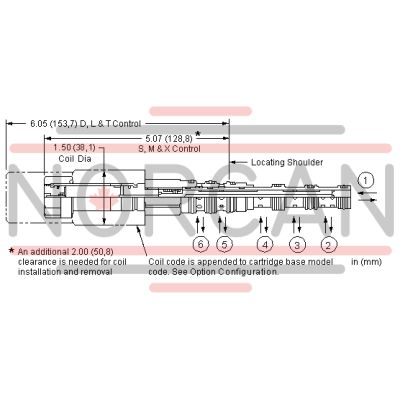

The Sun Hydraulics DNDYTXV298 (DNDYTXV298) is a solenoid-operated, 6-way, 2-position cartridge valve designed for selecting between two separate hydraulic circuits. In its de-energized state, it connects ports P and T to the first circuit, while energizing the solenoid redirects P and T to the second circuit. This direct-acting, balanced spool valve does not require minimum hydraulic pressure for operation and is fatigue-rated for service at pressures up to 5000 psi (350 bar). It features a wet armature design that allows working fluid to cool the armature, but users should be aware of potential fluid breakdown in water-glycol mixtures due to heat exposure. The valve offers several manual override options with a mechanical life expectancy of approximately 7,000 cycles; however, manual overrides are not compatible with weatherized coils. The DNDYTXV298 is part of Sun's Series 1 and fits into cavity T-61A. It has a flow capacity of up to 5 gpm (20 L/min) and a typical response time of 50 milliseconds. The valve can handle a maximum leakage rate of 5 in\u00b3/min at 3000 psi (80 cc/min at 210 bar) and supports switching frequencies up to 15,000 cycles per hour. The solenoid's high-efficiency magnetic design ensures reliable shifting by maximizing spool actuating force per watt used. Coils are interchangeable with other Sun Series 1 products and can be mounted in either direction; they offer various termination options and IP69K-rated connectors for enhanced environmental protection. The cartridge incorporates Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations.
The Sun Hydraulics DNDYTXV298 (DNDYTXV298) is a solenoid-operated, 6-way, 2-position cartridge valve designed for selecting between two separate hydraulic circuits. In its de-energized state, it connects ports P and T to the first circuit, while energizing the solenoid redirects P and T to the second circuit. This direct-acting, balanced spool valve does not require minimum hydraulic pressure for operation and is fatigue-rated for service at pressures up to 5000 psi (350 bar). It features a wet armature design that allows working fluid to cool the armature, but users should be aware of potential fluid breakdown in water-glycol mixtures due to heat exposure. The valve offers several manual override options with a mechanical life expectancy of approximately 7,000 cycles; however, manual overrides are not compatible with weatherized coils. The DNDYTXV298 is part of Sun's Series 1 and fits into cavity T-61A. It has a flow capacity of up to 5 gpm (20 L/min) and a typical response time of 50 milliseconds. The valve can handle a maximum leakage rate of 5 in\u00b3/min at 3000 psi (80 cc/min at 210 bar) and supports switching frequencies up to 15,000 cycles per hour. The solenoid's high-efficiency magnetic design ensures reliable shifting by maximizing spool actuating force per watt used. Coils are interchangeable with other Sun Series 1 products and can be mounted in either direction; they offer various termination options and IP69K-rated connectors for enhanced environmental protection. The cartridge incorporates Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations.
This solenoid-operated 6-way, 2-position cartridge is a direct-acting, balanced spool valve. The typical use for this valve is to select between two separate circuits. The de-energized condition connects P and T to the first circuit and when energized connects P and T to the second circuit.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This cartridge has several manual override choices, including no manual override. See the CONFIGURATION section. Please note: Manual override functionality is not compatible with weatherized coils.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 5 gpm20 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-461-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
