SUN HYDRAULICS
DNDYXXV848
$280.76 USD
- SUN HYDRAULICS
- Material:DNDYXXV848
- Model:DNDY-XXV@848
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

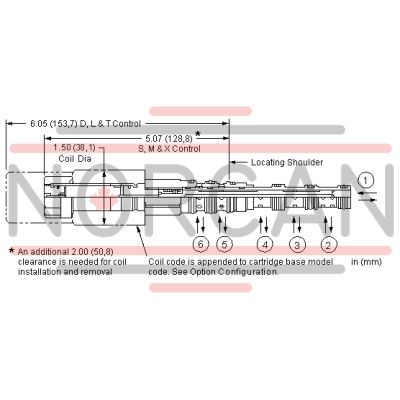

The Sun Hydraulics DNDYXXV848 (DNDYXXV848) is a solenoid-operated 6-way, 2-position cartridge valve designed for selecting between two separate hydraulic circuits. In its de-energized state, it connects ports P and T to the first circuit, while energizing the solenoid switches the connection to the second circuit. The valve features a direct-acting, balanced spool design and does not require a minimum hydraulic pressure for operation. It is fatigue-rated for up to 5000 psi (350 bar) service pressure, ensuring durability in demanding applications. This model offers various manual override options; however, manual override is not compatible with weatherized coils. The valve employs a wet armature design where the working fluid surrounds the armature, which can affect performance if exposed to prolonged coil heat. Users should be cautious when using fluids like water-glycol mixtures that may degrade under these conditions. The DNDYXXV848 utilizes a high-efficiency solenoid with unique magnetic properties that provide significant spool actuating force per watt, ensuring reliable shifting. Coils are interchangeable with other Sun Series 1 solenoid products and can be configured in either direction on the tube. Coil connector options are available with ratings up to IP69K for enhanced protection against environmental factors. Incorporating Sun's floating style construction minimizes internal binding risks due to installation torque or machining variations. The valve fits into cavity T-61A and has a capacity of 5 gpm (20 L/min). It supports a maximum switching frequency of 15,000 cycles per hour and has a typical response time of 50 ms. The valve's hex size is 7/8 inches (22.2 mm), with an installation torque range of 30\u201335 lbf ft (41\u201347 Nm). Additional seal kits are available for maintenance needs.
The Sun Hydraulics DNDYXXV848 (DNDYXXV848) is a solenoid-operated 6-way, 2-position cartridge valve designed for selecting between two separate hydraulic circuits. In its de-energized state, it connects ports P and T to the first circuit, while energizing the solenoid switches the connection to the second circuit. The valve features a direct-acting, balanced spool design and does not require a minimum hydraulic pressure for operation. It is fatigue-rated for up to 5000 psi (350 bar) service pressure, ensuring durability in demanding applications. This model offers various manual override options; however, manual override is not compatible with weatherized coils. The valve employs a wet armature design where the working fluid surrounds the armature, which can affect performance if exposed to prolonged coil heat. Users should be cautious when using fluids like water-glycol mixtures that may degrade under these conditions. The DNDYXXV848 utilizes a high-efficiency solenoid with unique magnetic properties that provide significant spool actuating force per watt, ensuring reliable shifting. Coils are interchangeable with other Sun Series 1 solenoid products and can be configured in either direction on the tube. Coil connector options are available with ratings up to IP69K for enhanced protection against environmental factors. Incorporating Sun's floating style construction minimizes internal binding risks due to installation torque or machining variations. The valve fits into cavity T-61A and has a capacity of 5 gpm (20 L/min). It supports a maximum switching frequency of 15,000 cycles per hour and has a typical response time of 50 ms. The valve's hex size is 7/8 inches (22.2 mm), with an installation torque range of 30\u201335 lbf ft (41\u201347 Nm). Additional seal kits are available for maintenance needs.
This solenoid-operated 6-way, 2-position cartridge is a direct-acting, balanced spool valve. The typical use for this valve is to select between two separate circuits. The de-energized condition connects P and T to the first circuit and when energized connects P and T to the second circuit.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This cartridge has several manual override choices, including no manual override. See the CONFIGURATION section. Please note: Manual override functionality is not compatible with weatherized coils.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 5 gpm20 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-461-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
