SUN HYDRAULICS
DOHPLDN
$297.84 USD
- SUN HYDRAULICS
- Material:DOHPLDN
- Model:DOHP-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DOHPLDN (Material Number: DOHPLDN) is a normally open, balanced poppet switching element designed for precise hydraulic control. This component remains open when pilot pressure is applied to port 3 until the pressure reaches the preset limit determined by the integral pilot relief stage, at which point the poppet shifts to a closed position. Featuring a unique balanced construction, it ensures predictable switching with high pressures of up to 5000 psi (350 bar) at both port 1 and port 2. The valve will revert to an open state when pilot pressure falls below 145 psi (10 bar). It is hydraulically balanced between port 1 and port 2, which are fully isolated from ports 3 and 4, ensuring minimal leakage\u2014typically less than 10 drops/min at maximum pressure. All ports can accommodate pressures up to 5000 psi (350 bar), and the design incorporates Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. This valve fits into a T-23A cavity and belongs to Series 3 with a capacity of up to 60 gpm (240 L/min). Installation requires a torque of between 150 -160 lbf ft (203 -217 Nm), while adjustments can be made using an internal hex size of 5/32 in. (4 mm). The locknut requires a torque of between 80 -90 lbf in. (9 -10 Nm). The valve uses Viton seal kits for optimal performance and durability.
The Sun Hydraulics DOHPLDN (Material Number: DOHPLDN) is a normally open, balanced poppet switching element designed for precise hydraulic control. This component remains open when pilot pressure is applied to port 3 until the pressure reaches the preset limit determined by the integral pilot relief stage, at which point the poppet shifts to a closed position. Featuring a unique balanced construction, it ensures predictable switching with high pressures of up to 5000 psi (350 bar) at both port 1 and port 2. The valve will revert to an open state when pilot pressure falls below 145 psi (10 bar). It is hydraulically balanced between port 1 and port 2, which are fully isolated from ports 3 and 4, ensuring minimal leakage\u2014typically less than 10 drops/min at maximum pressure. All ports can accommodate pressures up to 5000 psi (350 bar), and the design incorporates Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. This valve fits into a T-23A cavity and belongs to Series 3 with a capacity of up to 60 gpm (240 L/min). Installation requires a torque of between 150 -160 lbf ft (203 -217 Nm), while adjustments can be made using an internal hex size of 5/32 in. (4 mm). The locknut requires a torque of between 80 -90 lbf in. (9 -10 Nm). The valve uses Viton seal kits for optimal performance and durability.

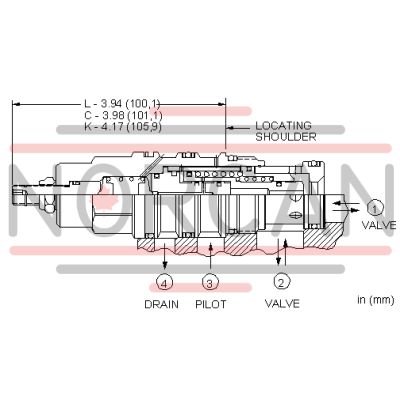

This is a normally open, balanced poppet, switching element. When pilot pressure is applied to port 3, the poppet remains open until the pilot pressure reaches the setting established by the integral pilot relief stage, at which point the poppet shifts to the closed position.
- Unique balanced construction provides predictable switching with 5000 psi (350 bar) at both port 1 and port 2. When the remote pressure signal at port 3 exceeds the internal valve setting, the valve shifts to the closed position.
- Any backpressure at the drain port is directly additive to the valve setting.
- Valve will open when the pilot pressure falls below 145 psi (10 bar).
- These valves are hydraulically balanced between port 1 and port 2.
- Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
- Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | See Performance DataSee Performance Data |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Seal kit - Cartridge | Viton: 990-023-006 |
