SUN HYDRAULICS
DOHPLWV
$304.79 USD
- SUN HYDRAULICS
- Material:DOHPLWV
- Model:DOHP-LWV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DOHPLWV (DOHPLWV) is a normally open, balanced poppet switching element designed for precise hydraulic control applications. This component remains open when pilot pressure is applied to port 3 until the pressure reaches a pre-set level determined by the integral pilot relief stage, at which point it shifts to a closed position. Its unique balanced construction allows for predictable switching with operating pressures up to 5000 psi (350 bar) at both port 1 and port 2. The valve will reopen when pilot pressure falls below 145 psi (10 bar), ensuring reliable operation across varying conditions. The DOHPLWV model features hydraulically balanced ports between port 1 and port 2, with full sealing from ports 3 and 4, minimizing leakage to less than 10 drops per minute at maximum pressure. The design incorporates Sun's floating style construction, reducing the risk of internal binding due to excessive installation torque or machining variations. With a capacity of up to 60 gpm (240 L/min), this valve is suitable for high-flow applications. The valve requires a minimum pilot pressure of 300 psi (20 bar) to shift and accommodates backpressure at the drain port as an additive factor to the valve setting. It fits into a T-23A cavity and has specific installation requirements, including a hex size of 1-1/4 inches (31.8 mm) and an installation torque range of 150-160 lbf ft (203-217 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut requires a torque of 80-90 lbf in (9-10 Nm). For maintenance, it uses a Viton seal kit with part number 990023006.
The Sun Hydraulics DOHPLWV (DOHPLWV) is a normally open, balanced poppet switching element designed for precise hydraulic control applications. This component remains open when pilot pressure is applied to port 3 until the pressure reaches a pre-set level determined by the integral pilot relief stage, at which point it shifts to a closed position. Its unique balanced construction allows for predictable switching with operating pressures up to 5000 psi (350 bar) at both port 1 and port 2. The valve will reopen when pilot pressure falls below 145 psi (10 bar), ensuring reliable operation across varying conditions. The DOHPLWV model features hydraulically balanced ports between port 1 and port 2, with full sealing from ports 3 and 4, minimizing leakage to less than 10 drops per minute at maximum pressure. The design incorporates Sun's floating style construction, reducing the risk of internal binding due to excessive installation torque or machining variations. With a capacity of up to 60 gpm (240 L/min), this valve is suitable for high-flow applications. The valve requires a minimum pilot pressure of 300 psi (20 bar) to shift and accommodates backpressure at the drain port as an additive factor to the valve setting. It fits into a T-23A cavity and has specific installation requirements, including a hex size of 1-1/4 inches (31.8 mm) and an installation torque range of 150-160 lbf ft (203-217 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut requires a torque of 80-90 lbf in (9-10 Nm). For maintenance, it uses a Viton seal kit with part number 990023006.

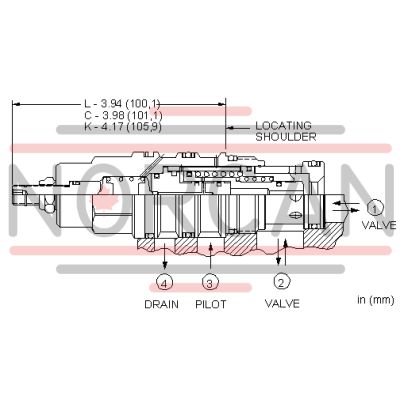

This is a normally open, balanced poppet, switching element. When pilot pressure is applied to port 3, the poppet remains open until the pilot pressure reaches the setting established by the integral pilot relief stage, at which point the poppet shifts to the closed position.
- Unique balanced construction provides predictable switching with 5000 psi (350 bar) at both port 1 and port 2. When the remote pressure signal at port 3 exceeds the internal valve setting, the valve shifts to the closed position.
- Any backpressure at the drain port is directly additive to the valve setting.
- Valve will open when the pilot pressure falls below 145 psi (10 bar).
- These valves are hydraulically balanced between port 1 and port 2.
- Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
- Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | See Performance DataSee Performance Data |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Seal kit - Cartridge | Viton: 990-023-006 |
