SUN HYDRAULICS
DOHRXHV
$276.59 USD
- SUN HYDRAULICS
- Material:DOHRXHV
- Model:DOHR-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DOHRXHV (DOHRXHV) is a normally open, balanced poppet switching element designed for efficient hydraulic control. This valve remains open when the vent port 4 is blocked and shifts to a closed position when vented, given sufficient pressure at port 3. It features a unique balanced construction that ensures predictable switching at high pressures of up to 5000 psi (350 bar) at both ports 1 and 2, with the vent port open and a minimum pilot pressure of 400 psi (30 bar) at port 3. The valve opens when pilot pressure drops below 145 psi (10 bar). Ports 1 and 2 are hydraulically balanced and fully sealed from ports 3 and 4, which are also positively sealed. The leakage rate between ports 1 and 2 is minimal, typically less than 10 drops per minute at maximum pressure. Port 4 can be externally connected to a pilot switching valve with low leakage rates to meet pilot flow requirements, such as the Sun model DAA solenoid pilot valve. The DOHRXHV incorporates Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. It fits into cavity T-23A and belongs to series 3 with a capacity of up to 60 gpm (240 L/min). The valve requires a minimum pilot pressure of 300 psi (20 bar) for shifting and can handle maximum operating pressures of up to 5000 psi (350 bar). It has a hex size of 1\u00bc inches (31.8 mm), an installation torque range of 150-160 lbf ft (203-217 Nm), weighs approximately 1.45 lb (0.70 kg), and is compatible with Viton seal kits like the cartridge model number: Viton:990023006.
The Sun Hydraulics DOHRXHV (DOHRXHV) is a normally open, balanced poppet switching element designed for efficient hydraulic control. This valve remains open when the vent port 4 is blocked and shifts to a closed position when vented, given sufficient pressure at port 3. It features a unique balanced construction that ensures predictable switching at high pressures of up to 5000 psi (350 bar) at both ports 1 and 2, with the vent port open and a minimum pilot pressure of 400 psi (30 bar) at port 3. The valve opens when pilot pressure drops below 145 psi (10 bar). Ports 1 and 2 are hydraulically balanced and fully sealed from ports 3 and 4, which are also positively sealed. The leakage rate between ports 1 and 2 is minimal, typically less than 10 drops per minute at maximum pressure. Port 4 can be externally connected to a pilot switching valve with low leakage rates to meet pilot flow requirements, such as the Sun model DAA solenoid pilot valve. The DOHRXHV incorporates Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. It fits into cavity T-23A and belongs to series 3 with a capacity of up to 60 gpm (240 L/min). The valve requires a minimum pilot pressure of 300 psi (20 bar) for shifting and can handle maximum operating pressures of up to 5000 psi (350 bar). It has a hex size of 1\u00bc inches (31.8 mm), an installation torque range of 150-160 lbf ft (203-217 Nm), weighs approximately 1.45 lb (0.70 kg), and is compatible with Viton seal kits like the cartridge model number: Viton:990023006.

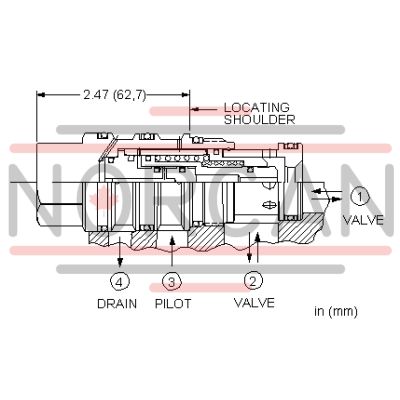

This is a normally open, balanced poppet, switching element. When the vent port (port 4) is blocked, the poppet remains in the open position. Venting port 4 shifts it to the closed position, provided there is sufficient pressure at port 3.
- Unique balanced construction provides predictable switching with 5000 psi (350 bar) at both ports 1 and 2, with the vent (port 4) open and a minimum pilot pressure of 400 psi (30 bar) at port 3.
- Valve will open when the pilot pressure falls below 145 psi (10 bar).
- These valves are hydraulically balanced between port 1 and port 2.
- Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
- Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
- Port 4 may be externally connected to a pilot switching valve. The pilot valve should have a leakage rate of less than 10 drops/min. and be able to satisfy the pilot flow requirements. Sun model DAA*-*** solenoid pilot valve is ideal for this application.
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | See Performance DataSee Performance Data |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.45 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-023-006 |
