SUN HYDRAULICS
DRAXLAV
$179.10 USD
- SUN HYDRAULICS
- Material:DRAXLAV
- Model:DRAX-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DRAXLAV (DRAXLAV) is a normally closed, direct-acting 2-way directional cartridge with an external drain that functions as a pilot unloading valve. It is designed to sense pressure in one circuit and switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to connect port 2 to port 3. The pilot area at port 1 and the spring chamber drain at port 4 are securely sealed, minimizing leakage between work ports 2 and 3 to less than 20 drops per minute (1.4 cc/min). This valve acts similarly to a hydraulic pressure switch without modulation capabilities. The DRAXLAV model incorporates Sun's floating style construction, which minimizes potential binding of internal parts due to excessive installation torque or variations in cavity/cartridge machining. It fits into cavity T-21A and belongs to Series 1, offering a capacity of .5 gpm (2 L/min) and a maximum operating pressure of up to 5000 psi (350 bar). The valve's reseat capability is set at 85% of its setting, with a maximum leakage rate upon reseat of 20 drops per minute. For installation, the valve requires a hex size of .78 inches (22.2 mm) and an installation torque between 30-35 lbf-ft (41-47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut requires a hex size of .916 inches (15 mm) with a torque specification of 80-90 lbf-in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits for optimal performance.
The Sun Hydraulics DRAXLAV (DRAXLAV) is a normally closed, direct-acting 2-way directional cartridge with an external drain that functions as a pilot unloading valve. It is designed to sense pressure in one circuit and switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to connect port 2 to port 3. The pilot area at port 1 and the spring chamber drain at port 4 are securely sealed, minimizing leakage between work ports 2 and 3 to less than 20 drops per minute (1.4 cc/min). This valve acts similarly to a hydraulic pressure switch without modulation capabilities. The DRAXLAV model incorporates Sun's floating style construction, which minimizes potential binding of internal parts due to excessive installation torque or variations in cavity/cartridge machining. It fits into cavity T-21A and belongs to Series 1, offering a capacity of .5 gpm (2 L/min) and a maximum operating pressure of up to 5000 psi (350 bar). The valve's reseat capability is set at 85% of its setting, with a maximum leakage rate upon reseat of 20 drops per minute. For installation, the valve requires a hex size of .78 inches (22.2 mm) and an installation torque between 30-35 lbf-ft (41-47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut requires a hex size of .916 inches (15 mm) with a torque specification of 80-90 lbf-in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits for optimal performance.

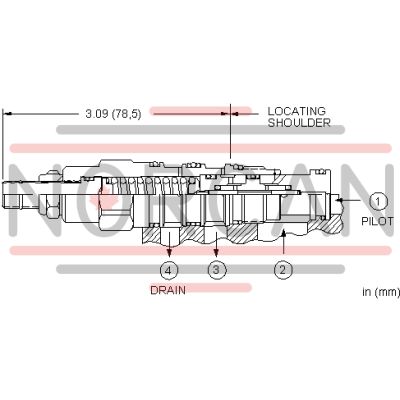

The normally-closed, direct-acting 2-way directional cartridge with external drain is a pilot unloading valve used to sense pressure in one circuit to switch or unload a valve in a different circuit. When pressure at port 1 exceeds the setting of the valve, the spool shifts to connect port 2 to port 3.
- The pilot area (port 1) and the spring chamber drain (port 4) are positively sealed.
- There is spool leakage between the work ports (ports 2 and 3)of less than 20 drops/min (1,4 cc/min).
- The valve is designed to not modulate and is the equivalent of a hydraulic pressure switch.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | .5 gpm2 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at Reseat | 20 drops/min.20 drops/min. |
| Reseat | >85% of setting>85% of setting |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
