SUN HYDRAULICS
DRAXLCN
$173.14 USD
- SUN HYDRAULICS
- Material:DRAXLCN
- Model:DRAX-LCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DRAXLCN (DRAXLCN) is a normally-closed, direct-acting 2-way directional cartridge with an external drain, designed as a pilot unloading valve. This component is utilized to sense pressure in one circuit and subsequently switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to connect port 2 to port 3. The pilot area at port 1 and the spring chamber drain at port 4 are positively sealed to ensure reliable operation. The valve exhibits minimal spool leakage between work ports 2 and 3, measuring less than 20 drops per minute (1.4 cc/min). It functions equivalently to a hydraulic pressure switch without modulating. Featuring Sun Hydraulics' floating style construction, this design minimizes potential binding of internal parts due to excessive installation torque or variations in cavity/cartridge machining. The DRAXLCN fits into cavity T-21A and belongs to series 1, with a capacity of .5 gpm (2 L/min) and can handle a maximum operating pressure of up to 5000 psi (350 bar). The valve's maximum leakage upon reseat is limited to 20 drops per minute, with reseating occurring at 85% of the set pressure. The DRAXLCN has specific installation requirements: a hex size of .78 inches (22.2 mm), installation torque ranging between 30 - 35 lbf\u00b7ft (41 - 47 Nm), an internal hex size adjustment screw of .532 inches (4 mm), and a locknut hex size of .916 inches (15 mm) requiring torque between 80 - 90 lbf\u00b7in (9 -10 Nm). Weighing approximately .30 lb (.15 kg), this model includes a Viton seal kit for enhanced durability and performance in various hydraulic applications.
The Sun Hydraulics DRAXLCN (DRAXLCN) is a normally-closed, direct-acting 2-way directional cartridge with an external drain, designed as a pilot unloading valve. This component is utilized to sense pressure in one circuit and subsequently switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to connect port 2 to port 3. The pilot area at port 1 and the spring chamber drain at port 4 are positively sealed to ensure reliable operation. The valve exhibits minimal spool leakage between work ports 2 and 3, measuring less than 20 drops per minute (1.4 cc/min). It functions equivalently to a hydraulic pressure switch without modulating. Featuring Sun Hydraulics' floating style construction, this design minimizes potential binding of internal parts due to excessive installation torque or variations in cavity/cartridge machining. The DRAXLCN fits into cavity T-21A and belongs to series 1, with a capacity of .5 gpm (2 L/min) and can handle a maximum operating pressure of up to 5000 psi (350 bar). The valve's maximum leakage upon reseat is limited to 20 drops per minute, with reseating occurring at 85% of the set pressure. The DRAXLCN has specific installation requirements: a hex size of .78 inches (22.2 mm), installation torque ranging between 30 - 35 lbf\u00b7ft (41 - 47 Nm), an internal hex size adjustment screw of .532 inches (4 mm), and a locknut hex size of .916 inches (15 mm) requiring torque between 80 - 90 lbf\u00b7in (9 -10 Nm). Weighing approximately .30 lb (.15 kg), this model includes a Viton seal kit for enhanced durability and performance in various hydraulic applications.

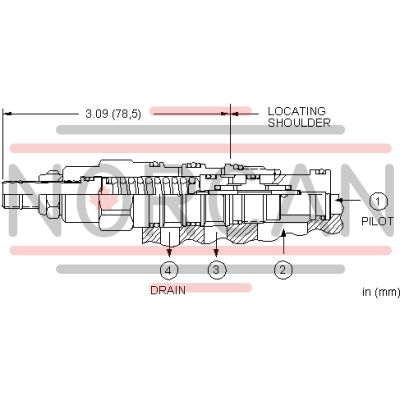

The normally-closed, direct-acting 2-way directional cartridge with external drain is a pilot unloading valve used to sense pressure in one circuit to switch or unload a valve in a different circuit. When pressure at port 1 exceeds the setting of the valve, the spool shifts to connect port 2 to port 3.
- The pilot area (port 1) and the spring chamber drain (port 4) are positively sealed.
- There is spool leakage between the work ports (ports 2 and 3)of less than 20 drops/min (1,4 cc/min).
- The valve is designed to not modulate and is the equivalent of a hydraulic pressure switch.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | .5 gpm2 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at Reseat | 20 drops/min.20 drops/min. |
| Reseat | >85% of setting>85% of setting |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
