SUN HYDRAULICS
DRAXLCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

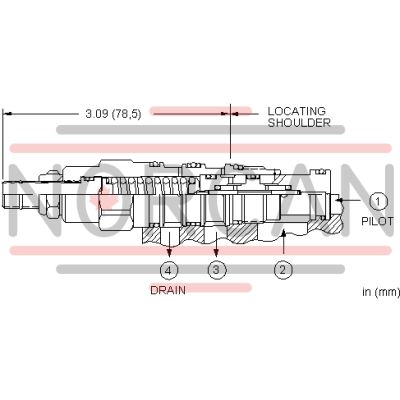

The Sun Hydraulics DRAXLCV (DRAXLCV) is a normally closed, direct-acting 2-way directional cartridge with an external drain, designed primarily as a pilot unloading valve. This valve is engineered to sense pressure in one circuit and switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's setting, the spool shifts, connecting port 2 to port 3. The pilot area at port 1 and the spring chamber drain at port 4 are positively sealed, ensuring reliable operation with minimal leakage. Specifically, there is a spool leakage between work ports 2 and 3 of less than 20 drops per minute (approximately 1.4 cc/min), making it highly efficient for precise applications. The DRAXLCV does not modulate and functions equivalently to a hydraulic pressure switch. It incorporates Sun's floating style construction to minimize potential internal part binding due to excessive installation torque or cavity/cartridge machining variations. The valve fits into a T-21A cavity and belongs to Series 1 with a capacity of .5 gpm (2 L/min) and can handle a maximum operating pressure of up to 5000 psi (350 bar). It features a reseat capability at 85% of its setting and maintains maximum valve leakage at reseat under control. For installation, the DRAXLCV requires specific torques: the valve hex size is .78 inches (22.2 mm), with an installation torque range of 30 - 35 lbf ft (41 - 47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut hex size is .916 inches (15 mm) with a torque specification of 80 - 90 lbf in (9 -10 Nm). Weighing just .30 lb (.15 kg), this model comes equipped with Viton seal kits for enhanced durability.
