SUN HYDRAULICS
DRAYLAV
$179.10 USD
- SUN HYDRAULICS
- Material:DRAYLAV
- Model:DRAY-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DRAYLAV (Material Number: DRAYLAV) is a normally open, direct-acting 2-way directional cartridge with an external drain, functioning as a pilot unloading valve. It is designed to sense pressure in one circuit and switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to block port 2 from port 3. The pilot area at port 1 and the spring chamber drain at port 4 are positively sealed, ensuring minimal leakage between work ports 2 and 3, with a maximum leakage rate of less than 20 drops per minute (1.4 cc/min). This valve acts as a hydraulic pressure switch without modulation capabilities. The DRAYLAV model incorporates Sun's floating style construction, reducing the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into cavity T-21A and belongs to Series 1 with a capacity of .5 gpm (2 L/min). The maximum operating pressure for this valve is rated at 5000 psi (350 bar), with a reseat capability of 85% of the setting. The valve hex size measures .78 inches (22.2 mm), while installation torque ranges between 30 - 35 lbf ft (41 - 47 Nm). The adjustment screw features an internal hex size of .156 inches (4 mm), and the locknut has a hex size of .5625 inches (15 mm) with a torque range of 80 - 90 lbf in (9 -10 Nm). The model weighs approximately .30 lb (.15 kg) and utilizes Viton seal kit number: 990021006 for maintenance purposes.
The Sun Hydraulics DRAYLAV (Material Number: DRAYLAV) is a normally open, direct-acting 2-way directional cartridge with an external drain, functioning as a pilot unloading valve. It is designed to sense pressure in one circuit and switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to block port 2 from port 3. The pilot area at port 1 and the spring chamber drain at port 4 are positively sealed, ensuring minimal leakage between work ports 2 and 3, with a maximum leakage rate of less than 20 drops per minute (1.4 cc/min). This valve acts as a hydraulic pressure switch without modulation capabilities. The DRAYLAV model incorporates Sun's floating style construction, reducing the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into cavity T-21A and belongs to Series 1 with a capacity of .5 gpm (2 L/min). The maximum operating pressure for this valve is rated at 5000 psi (350 bar), with a reseat capability of 85% of the setting. The valve hex size measures .78 inches (22.2 mm), while installation torque ranges between 30 - 35 lbf ft (41 - 47 Nm). The adjustment screw features an internal hex size of .156 inches (4 mm), and the locknut has a hex size of .5625 inches (15 mm) with a torque range of 80 - 90 lbf in (9 -10 Nm). The model weighs approximately .30 lb (.15 kg) and utilizes Viton seal kit number: 990021006 for maintenance purposes.

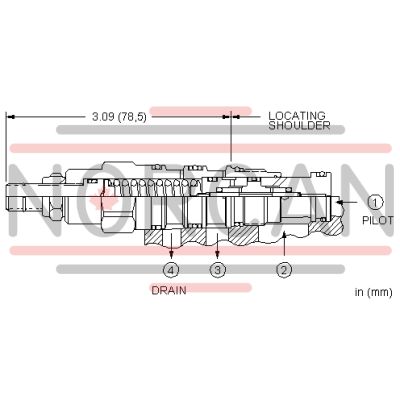

The normally-open, direct-acting 2-way directional cartridge with external drain is a pilot unloading valve used to sense pressure in one circuit to switch or unload a valve in a different circuit. When pressure at port 1 exceeds the setting of the valve, the spool shifts to block port 2 from port 3.
- The pilot area (port 1) and the spring chamber drain (port 4) are positively sealed.
- There is spool leakage between the work ports (ports 2 and 3)of less than 20 drops/min (1,4 cc/min).
- The valve is designed to not modulate and is the equivalent of a hydraulic pressure switch.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | .5 gpm2 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at Reseat | 20 drops/min.20 drops/min. |
| Reseat | >85% of setting>85% of setting |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
