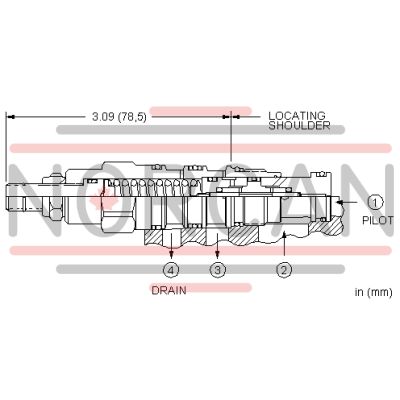

The Sun Hydraulics DRAYLCN (DRAYLCN) is a normally open, direct-acting 2-way directional cartridge with an external drain, functioning as a pilot unloading valve. It is designed to sense pressure in one circuit to switch or unload a valve in another circuit. When the pressure at port 1 surpasses the valve's set threshold, the spool shifts to block port 2 from port 3. The pilot area at port 1 and spring chamber drain at port 4 are positively sealed, ensuring minimal leakage between work ports 2 and 3, which is less than 20 drops per minute (1.4 cc/min). This valve does not modulate and acts similarly to a hydraulic pressure switch, incorporating Sun's floating style construction to reduce internal parts binding due to excessive installation torque or machining variations. The DRAYLCN fits into cavity T-21A and belongs to Series 1 with a capacity of .5 gpm (2 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar). The maximum valve leakage at reseat is limited to 20 drops per minute, with reseating occurring at approximately 85% of the setting. The hex size for the valve is .78 inches (22.2 mm), requiring an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of .156 inches (4 mm), while the locknut has a hex size of .563 inches (15 mm) with a torque specification of 80-90 lbf in (9-10 Nm). Weighing .30 lb (.15 kg), this model utilizes Viton seals for its cartridge.
