The Sun Hydraulics DRAYLCV (DRAYLCV) is a normally-open, direct-acting 2-way directional cartridge with an external drain, functioning as a pilot unloading valve. This valve is adept at sensing pressure in one circuit to switch or unload a valve in another circuit. When the pressure at port 1 exceeds the set value, the spool shifts to block port 2 from port 3. It features sealed pilot area port 1 and spring chamber drain port 4, ensuring minimal spool leakage between work ports 2 and 3, recorded at less than 20 drops/min (1.4 cc/min). The DRAYLCV operates akin to a hydraulic pressure switch without modulation and utilizes Sun's floating style construction to reduce internal binding risks due to excessive installation torque or machining variations. This valve fits into cavity T-21A and belongs to Series 1 with a flow capacity of .5 gpm (2 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It has a maximum valve leakage at reseat of 20 drops/min and reseats at 85% of its setting. The hex size for the valve is .78 inches (22.2 mm), with an installation torque ranging from 30 to 35 lbf-ft (41 to 47 Nm). The adjustment screw requires an internal hex size of .532 inches (4 mm), while the locknut has a hex size of .916 inches (15 mm) with a torque requirement of 80 to 90 lbf-in (9 to 10 Nm). Weighing just .30 lb (.15 kg), the DRAYLCV is compact yet robust, suitable for applications requiring reliable pressure sensing and unloading capabilities in hydraulic systems.
The Sun Hydraulics DRAYLCV (DRAYLCV) is a normally-open, direct-acting 2-way directional cartridge with an external drain, functioning as a pilot unloading valve. This valve is adept at sensing pressure in one circuit to switch or unload a valve in another circuit. When the pressure at port 1 exceeds the set value, the spool shifts to block port 2 from port 3. It features sealed pilot area port 1 and spring chamber drain port 4, ensuring minimal spool leakage between work ports 2 and 3, recorded at less than 20 drops/min (1.4 cc/min). The DRAYLCV operates akin to a hydraulic pressure switch without modulation and utilizes Sun's floating style construction to reduce internal binding risks due to excessive installation torque or machining variations. This valve fits into cavity T-21A and belongs to Series 1 with a flow capacity of .5 gpm (2 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It has a maximum valve leakage at reseat of 20 drops/min and reseats at 85% of its setting. The hex size for the valve is .78 inches (22.2 mm), with an installation torque ranging from 30 to 35 lbf-ft (41 to 47 Nm). The adjustment screw requires an internal hex size of .532 inches (4 mm), while the locknut has a hex size of .916 inches (15 mm) with a torque requirement of 80 to 90 lbf-in (9 to 10 Nm). Weighing just .30 lb (.15 kg), the DRAYLCV is compact yet robust, suitable for applications requiring reliable pressure sensing and unloading capabilities in hydraulic systems.

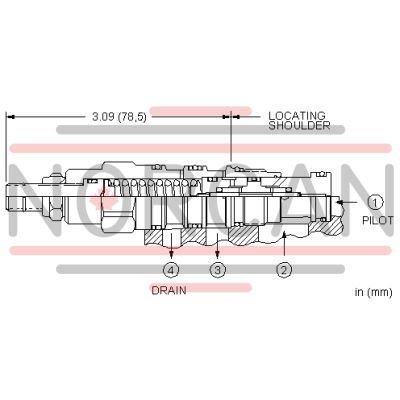

The normally-open, direct-acting 2-way directional cartridge with external drain is a pilot unloading valve used to sense pressure in one circuit to switch or unload a valve in a different circuit. When pressure at port 1 exceeds the setting of the valve, the spool shifts to block port 2 from port 3.
- The pilot area (port 1) and the spring chamber drain (port 4) are positively sealed.
- There is spool leakage between the work ports (ports 2 and 3)of less than 20 drops/min (1,4 cc/min).
- The valve is designed to not modulate and is the equivalent of a hydraulic pressure switch.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | .5 gpm2 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at Reseat | 20 drops/min.20 drops/min. |
| Reseat | >85% of setting>85% of setting |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
