SUN HYDRAULICS
DRBMXFV
$134.43 USD
- SUN HYDRAULICS
- Material:DRBMXFV
- Model:DRBM-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

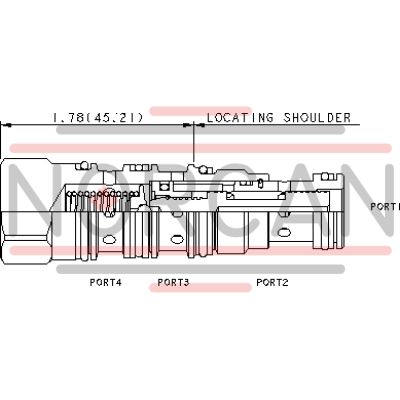

The Sun Hydraulics DRBMXFV (DRBMXFV) is a normally open, direct-acting, 2-way directional cartridge valve designed for moderate flow circuits. This versatile component can function independently or in conjunction with larger pilot-operated directional or logic cartridges. It operates by shifting when the pressure differential between port 1 and port 4 surpasses a predetermined setting. Notably, port 3 can serve as a work port, and the flow path between ports 2 and 3 is bidirectional. The valve's direct-acting design ensures minimal internal leakage and low pilot flow consumption, making it efficient in its operation. The DRBMXFV model is interchangeable with other direct-acting and pilot-operated valves from Sun Hydraulics, sharing the same cavities and flow paths. Its construction incorporates Sun's floating style to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The valve is capable of modulating between two positions but is not bistable. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of 7 gpm (28 L/min). The factory pressure settings are established at a flow rate of 4 gpm (15 L/min), with maximum valve leakage at 110 SUS (24 cSt) rated at 2 in\u00b3/min (30 cc/min). The valve features a hex size of 7/8 inches (22.2 mm) and should be installed with a torque range of 30 - 35 lbf ft (41 - 47 Nm). It has a model weight of .55 lb (.25 kg) and utilizes Viton seal kits under part number 990021006. Maximum pressure at port 3 should not exceed 3000 psi (210 bar) due to fatigue strength limits rather than hydraulic operating limits.
The Sun Hydraulics DRBMXFV (DRBMXFV) is a normally open, direct-acting, 2-way directional cartridge valve designed for moderate flow circuits. This versatile component can function independently or in conjunction with larger pilot-operated directional or logic cartridges. It operates by shifting when the pressure differential between port 1 and port 4 surpasses a predetermined setting. Notably, port 3 can serve as a work port, and the flow path between ports 2 and 3 is bidirectional. The valve's direct-acting design ensures minimal internal leakage and low pilot flow consumption, making it efficient in its operation. The DRBMXFV model is interchangeable with other direct-acting and pilot-operated valves from Sun Hydraulics, sharing the same cavities and flow paths. Its construction incorporates Sun's floating style to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The valve is capable of modulating between two positions but is not bistable. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of 7 gpm (28 L/min). The factory pressure settings are established at a flow rate of 4 gpm (15 L/min), with maximum valve leakage at 110 SUS (24 cSt) rated at 2 in\u00b3/min (30 cc/min). The valve features a hex size of 7/8 inches (22.2 mm) and should be installed with a torque range of 30 - 35 lbf ft (41 - 47 Nm). It has a model weight of .55 lb (.25 kg) and utilizes Viton seal kits under part number 990021006. Maximum pressure at port 3 should not exceed 3000 psi (210 bar) due to fatigue strength limits rather than hydraulic operating limits.
Normally open, direct-acting, 2-way directional cartridges are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 4 exceeds the setting.
- Port 3 can be used as a work port.
- The flow path between port 2 and port 3 is bidirectional.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- Pressure at port 4 is directly additive to the setting of the valve.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | 7 gpm28 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .55 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
