SUN HYDRAULICS
DRBNXFN
$125.49 USD
- SUN HYDRAULICS
- Material:DRBNXFN
- Model:DRBN-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

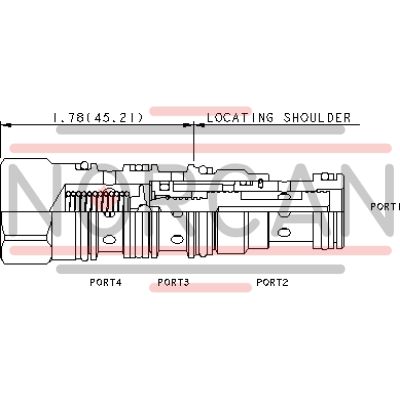

The Sun Hydraulics DRBNXFN (Material Number: DRBNXFN) is a normally closed, direct-acting, 2-way directional cartridge valve designed for use in moderate flow hydraulic circuits. This versatile component can function independently or be utilized to actuate larger pilot-operated directional cartridges or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 4 exceeds the specified setting. Notably, port 3 can serve as a work port, and the flow path between ports 2 and 3 is bidirectional. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 7 gpm (28 L/min), this valve is engineered for durability and efficiency. It incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or cavity-cartridge machining variations. The design ensures low internal leakage and minimal pilot flow consumption, making it an efficient choice for various applications. The valve's direct-acting design allows for quick response times, while its interchangeable nature with pilot-operated versions provides flexibility in system design. The maximum pressure at port 3 should be limited to 3000 psi (210 bar) due to fatigue strength limits rather than hydraulic operating constraints. Additionally, the DRBNXFN features a valve hex size of 7/8 inches (22.2 mm) and requires an installation torque of 30-35 lbf ft (41-47 Nm). Its compact model weight of .55 lb (0.25 kg) facilitates easy integration into existing systems. This cartridge fits into cavity T-21A, belongs to series 1, and has factory pressure settings established at a flow rate of 4 gpm (15 L/min). The maximum valve leakage at viscosity levels of 110 SUS (24 cSt) is limited to 2 in\u00b3/min (30 cc/min), ensuring reliable performance across various operational conditions.
The Sun Hydraulics DRBNXFN (Material Number: DRBNXFN) is a normally closed, direct-acting, 2-way directional cartridge valve designed for use in moderate flow hydraulic circuits. This versatile component can function independently or be utilized to actuate larger pilot-operated directional cartridges or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 4 exceeds the specified setting. Notably, port 3 can serve as a work port, and the flow path between ports 2 and 3 is bidirectional. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 7 gpm (28 L/min), this valve is engineered for durability and efficiency. It incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or cavity-cartridge machining variations. The design ensures low internal leakage and minimal pilot flow consumption, making it an efficient choice for various applications. The valve's direct-acting design allows for quick response times, while its interchangeable nature with pilot-operated versions provides flexibility in system design. The maximum pressure at port 3 should be limited to 3000 psi (210 bar) due to fatigue strength limits rather than hydraulic operating constraints. Additionally, the DRBNXFN features a valve hex size of 7/8 inches (22.2 mm) and requires an installation torque of 30-35 lbf ft (41-47 Nm). Its compact model weight of .55 lb (0.25 kg) facilitates easy integration into existing systems. This cartridge fits into cavity T-21A, belongs to series 1, and has factory pressure settings established at a flow rate of 4 gpm (15 L/min). The maximum valve leakage at viscosity levels of 110 SUS (24 cSt) is limited to 2 in\u00b3/min (30 cc/min), ensuring reliable performance across various operational conditions.
Normally closed, direct-acting, 2-way directional cartridges are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 4 exceeds the setting.
- Port 3 can be used as a work port.
- The flow path between port 2 and port 3 is bidirectional.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- Pressure at port 4 is directly additive to the setting of the valve.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | 7 gpm28 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .55 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
