SUN HYDRAULICS
DRCCLBV
$145.65 USD
- SUN HYDRAULICS
- Material:DRCCLBV
- Model:DRCC-LBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

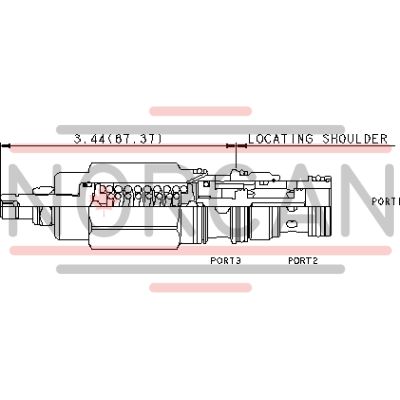

The Sun Hydraulics DRCCLBV (DRCCLBV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component can function independently or in conjunction with larger pilot-operated directional or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses its set threshold. Notably, the pressure at port 3 directly adds to the valve setting, which may limit its use as a work port in certain circuits; a four-port version is available for such cases. Thanks to its direct-acting design, the DRCCLBV offers low internal leakage and minimal pilot flow consumption. The valve features Sun's floating style construction, minimizing risks of internal binding due to installation torque or machining variations. It is capable of modulating between two positions and is not bistable. The DRCCLBV fits into T2A cavities and belongs to Series 2, with a capacity of handling up to 15 gpm (60 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The maximum leakage rate at 110 SUS (24 cSt) is limited to 2 in\u00b3/min (30 cc/min). This model requires specific torque settings for installation: a valve hex size of 1-1/8 inches (28.6 mm) with an installation torque range of 45-50 lbf\u00b7ft (61-68 Nm). Additionally, it includes an adjustment screw with an internal hex size of 5/32 inches (4 mm), allowing for precise setting adjustments through clockwise turns. The locknut hex measures 9/16 inches (15 mm), requiring a torque setting between 80-90 lbf\u00b7in (9-10 Nm). Weighing just .60 lb (.30 kg), this cartridge comes with a polyurethane seal kit option for reliable sealing performance.
The Sun Hydraulics DRCCLBV (DRCCLBV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component can function independently or in conjunction with larger pilot-operated directional or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses its set threshold. Notably, the pressure at port 3 directly adds to the valve setting, which may limit its use as a work port in certain circuits; a four-port version is available for such cases. Thanks to its direct-acting design, the DRCCLBV offers low internal leakage and minimal pilot flow consumption. The valve features Sun's floating style construction, minimizing risks of internal binding due to installation torque or machining variations. It is capable of modulating between two positions and is not bistable. The DRCCLBV fits into T2A cavities and belongs to Series 2, with a capacity of handling up to 15 gpm (60 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The maximum leakage rate at 110 SUS (24 cSt) is limited to 2 in\u00b3/min (30 cc/min). This model requires specific torque settings for installation: a valve hex size of 1-1/8 inches (28.6 mm) with an installation torque range of 45-50 lbf\u00b7ft (61-68 Nm). Additionally, it includes an adjustment screw with an internal hex size of 5/32 inches (4 mm), allowing for precise setting adjustments through clockwise turns. The locknut hex measures 9/16 inches (15 mm), requiring a torque setting between 80-90 lbf\u00b7in (9-10 Nm). Weighing just .60 lb (.30 kg), this cartridge comes with a polyurethane seal kit option for reliable sealing performance.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Polyurethane: 990-002-002 |
