SUN HYDRAULICS
DRCCLDV
$147.63 USD
- SUN HYDRAULICS
- Material:DRCCLDV
- Model:DRCC-LDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DRCCLDV (DRCCLDV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component can function independently or be used to actuate larger pilot-operated directional or logic cartridges. It operates by shifting when the pressure differential between port 1 and port 3 surpasses the preset threshold. Notably, pressure at port 3 adds directly to the valve's setting, which may restrict its use as a work port in certain applications; in such cases, a 4-port version might be more suitable. The DRCCLDV features low internal leakage and minimal pilot flow consumption due to its direct-acting design. Additionally, it is interchangeable with pilot-operated versions, sharing cavity compatibility and flow paths. However, this valve is not bistable and can modulate between two positions. Constructed with Sun's floating style design, it minimizes internal part binding risks caused by excessive installation torque or machining variations in the cavity/cartridge interface. The valve fits into T2A cavities and belongs to Series 2 with a capacity of 15 gpm (60 L/min). Factory pressure settings are established at 4 gpm (15 L/min), while it can handle a maximum operating pressure of up to 5000 psi (350 bar). With a maximum leakage rate of 2 in\u00b3/min (30 cc/min) at 110 SUS (24 cSt), the DRCCLDV ensures efficient performance. Adjustments are made via an internal hex screw with five clockwise turns increasing the setting. The valve has specific installation requirements: hex size of 1-1/8 inches (28.6 mm), installation torque between 45-50 lbf-ft (61-68 Nm), locknut hex size of 9/16 inches (15 mm), and locknut torque of 80-90 lbf-in (9-10 Nm). Weighing only .60 lb (.30 kg), this cartridge comes with a polyurethane seal kit for optimal sealing performance.
The Sun Hydraulics DRCCLDV (DRCCLDV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component can function independently or be used to actuate larger pilot-operated directional or logic cartridges. It operates by shifting when the pressure differential between port 1 and port 3 surpasses the preset threshold. Notably, pressure at port 3 adds directly to the valve's setting, which may restrict its use as a work port in certain applications; in such cases, a 4-port version might be more suitable. The DRCCLDV features low internal leakage and minimal pilot flow consumption due to its direct-acting design. Additionally, it is interchangeable with pilot-operated versions, sharing cavity compatibility and flow paths. However, this valve is not bistable and can modulate between two positions. Constructed with Sun's floating style design, it minimizes internal part binding risks caused by excessive installation torque or machining variations in the cavity/cartridge interface. The valve fits into T2A cavities and belongs to Series 2 with a capacity of 15 gpm (60 L/min). Factory pressure settings are established at 4 gpm (15 L/min), while it can handle a maximum operating pressure of up to 5000 psi (350 bar). With a maximum leakage rate of 2 in\u00b3/min (30 cc/min) at 110 SUS (24 cSt), the DRCCLDV ensures efficient performance. Adjustments are made via an internal hex screw with five clockwise turns increasing the setting. The valve has specific installation requirements: hex size of 1-1/8 inches (28.6 mm), installation torque between 45-50 lbf-ft (61-68 Nm), locknut hex size of 9/16 inches (15 mm), and locknut torque of 80-90 lbf-in (9-10 Nm). Weighing only .60 lb (.30 kg), this cartridge comes with a polyurethane seal kit for optimal sealing performance.

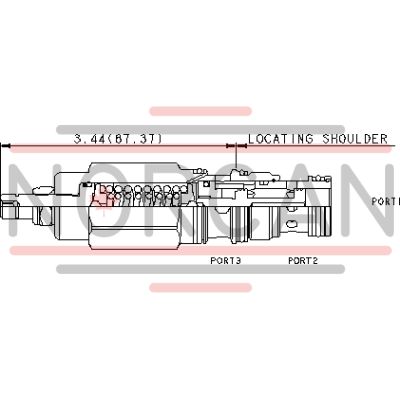

Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Polyurethane: 990-002-002 |
