SUN HYDRAULICS
DRCCLEV
$147.63 USD
- SUN HYDRAULICS
- Material:DRCCLEV
- Model:DRCC-LEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

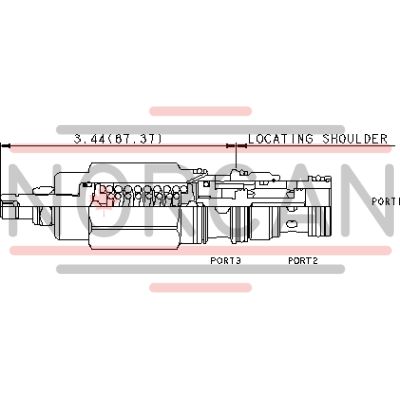

The Sun Hydraulics DRCCLEV (Material Number: DRCCLEV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This model features a configuration where port 1 is blocked and ports 2 to 3 are open, making it suitable for use alone or to control larger pilot-operated directional or logic cartridges. The valve activates when the pressure differential between port 1 and port 3 surpasses a predetermined setting, with pressure at port 3 directly affecting this setting. Due to this characteristic, port 3 may not be suitable as a work port in some circuits; however, a 4-port version of this valve can be considered if necessary. The DRCCLEV valve is known for its low internal leakage and minimal pilot flow consumption due to its direct-acting design. It is interchangeable with pilot-operated versions, sharing the same cavity (T-2A) and flow paths. This model has a capacity of up to 15 gpm (60 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It features factory pressure settings established at 4 gpm (15 L/min), with maximum valve leakage at 110 SUS (24 cSt) limited to 2 in\u00b3/min (30 cc/min). Adjustments are made via an internal hex screw with five clockwise turns needed to increase the setting. The installation requires a torque of between 45 and 50 lbf\u00b7ft (61 - 68 Nm), while the locknut requires a torque of between 80 and 90 lbf\u00b7in (9 -10 Nm). Weighing approximately .60 lb (.30 kg), this valve incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in cavities or cartridges.
The Sun Hydraulics DRCCLEV (Material Number: DRCCLEV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This model features a configuration where port 1 is blocked and ports 2 to 3 are open, making it suitable for use alone or to control larger pilot-operated directional or logic cartridges. The valve activates when the pressure differential between port 1 and port 3 surpasses a predetermined setting, with pressure at port 3 directly affecting this setting. Due to this characteristic, port 3 may not be suitable as a work port in some circuits; however, a 4-port version of this valve can be considered if necessary. The DRCCLEV valve is known for its low internal leakage and minimal pilot flow consumption due to its direct-acting design. It is interchangeable with pilot-operated versions, sharing the same cavity (T-2A) and flow paths. This model has a capacity of up to 15 gpm (60 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It features factory pressure settings established at 4 gpm (15 L/min), with maximum valve leakage at 110 SUS (24 cSt) limited to 2 in\u00b3/min (30 cc/min). Adjustments are made via an internal hex screw with five clockwise turns needed to increase the setting. The installation requires a torque of between 45 and 50 lbf\u00b7ft (61 - 68 Nm), while the locknut requires a torque of between 80 and 90 lbf\u00b7in (9 -10 Nm). Weighing approximately .60 lb (.30 kg), this valve incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in cavities or cartridges.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Polyurethane: 990-002-002 |
