SUN HYDRAULICS
DRCCLSN
$140.68 USD
- SUN HYDRAULICS
- Material:DRCCLSN
- Model:DRCC-LSN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

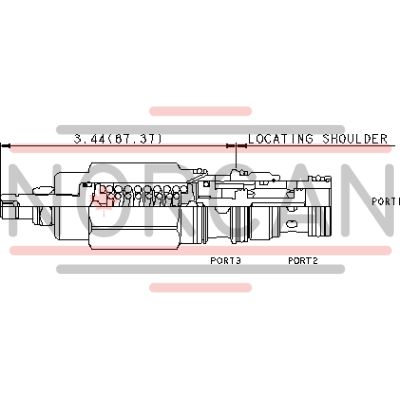

The Sun Hydraulics DRCCLSN (DRCCLSN) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component is typically used to switch between two positions, with port 1 blocked and ports 2 to 3 open. It can function independently or in conjunction with larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 surpasses the preset value, with pressure at port 3 directly adding to this setting. Due to this characteristic, port 3 may not be suitable as a work port in some circuits; however, a four-port version of this valve could resolve such issues. The DRCCLSN features low internal leakage and minimal pilot flow consumption due to its direct-acting design. It shares cavity compatibility and flow paths with pilot-operated versions, allowing for interchangeability. This model is not bistable but can modulate between two positions as needed. Its construction incorporates Sun's floating style design to reduce the risk of internal part binding caused by excessive installation torque or machining variations. The valve fits into a T2A cavity and falls under Series 2, with a capacity of up to 15 gpm (60 L/min) and maximum operating pressure reaching 5000 psi (350 bar). The factory pressure settings are established at 4 gpm (15 L/min), with maximum valve leakage rated at 2 in\u00b3/min (30 cc/min). Adjustments can be made via an internal hex screw requiring up to five clockwise turns to increase settings. Installation requires a torque of 45-50 lbf ft (61-68 Nm), while the locknut should be torqued between 80-90 lbf in (9-10 Nm). The model weighs approximately .60 lb (.30 kg) and uses a polyurethane seal kit identified as part number 990002002.
The Sun Hydraulics DRCCLSN (DRCCLSN) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component is typically used to switch between two positions, with port 1 blocked and ports 2 to 3 open. It can function independently or in conjunction with larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 surpasses the preset value, with pressure at port 3 directly adding to this setting. Due to this characteristic, port 3 may not be suitable as a work port in some circuits; however, a four-port version of this valve could resolve such issues. The DRCCLSN features low internal leakage and minimal pilot flow consumption due to its direct-acting design. It shares cavity compatibility and flow paths with pilot-operated versions, allowing for interchangeability. This model is not bistable but can modulate between two positions as needed. Its construction incorporates Sun's floating style design to reduce the risk of internal part binding caused by excessive installation torque or machining variations. The valve fits into a T2A cavity and falls under Series 2, with a capacity of up to 15 gpm (60 L/min) and maximum operating pressure reaching 5000 psi (350 bar). The factory pressure settings are established at 4 gpm (15 L/min), with maximum valve leakage rated at 2 in\u00b3/min (30 cc/min). Adjustments can be made via an internal hex screw requiring up to five clockwise turns to increase settings. Installation requires a torque of 45-50 lbf ft (61-68 Nm), while the locknut should be torqued between 80-90 lbf in (9-10 Nm). The model weighs approximately .60 lb (.30 kg) and uses a polyurethane seal kit identified as part number 990002002.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Polyurethane: 990-002-002 |
