SUN HYDRAULICS
DRCCLSV
$148.62 USD
- SUN HYDRAULICS
- Material:DRCCLSV
- Model:DRCC-LSV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

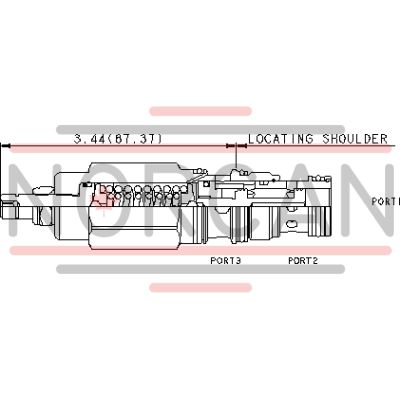

The Sun Hydraulics DRCCLSV (Material Number: DRCCLSV) is a direct-acting, 3-way directional cartridge valve designed to manage moderate flow circuits effectively. This versatile component can function independently or be utilized to actuate larger pilot-operated directional cartridges or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses the preset value, with pressure at port 3 being directly additive to the valve's setting. It is important to note that port 3 may not be suitable as a work port in certain circuits; in such cases, a 4-port version of this valve might be more appropriate. The DRCCLSV features low internal leakage and minimal pilot flow consumption due to its direct-acting design. Notably, both direct-acting and pilot-operated versions of these valves are interchangeable, fitting the same cavities and possessing identical flow paths. However, this model is not bistable and can modulate between two positions as needed. It incorporates Sun's floating style construction, which reduces the risk of internal binding caused by excessive installation torque or machining variations. This cartridge fits into a T-2A cavity and belongs to Series 2 with a capacity of up to 15 gpm (60 L/min). Factory pressure settings are established at a flow rate of 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The valve's maximum leakage rate is specified at 2 in\u00b3/min (30 cc/min) at an oil viscosity of 110 SUS (24 cSt). The adjustment mechanism allows for increased settings through clockwise turns, with specific torque requirements for installation and locknut adjustments provided for optimal performance.
The Sun Hydraulics DRCCLSV (Material Number: DRCCLSV) is a direct-acting, 3-way directional cartridge valve designed to manage moderate flow circuits effectively. This versatile component can function independently or be utilized to actuate larger pilot-operated directional cartridges or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses the preset value, with pressure at port 3 being directly additive to the valve's setting. It is important to note that port 3 may not be suitable as a work port in certain circuits; in such cases, a 4-port version of this valve might be more appropriate. The DRCCLSV features low internal leakage and minimal pilot flow consumption due to its direct-acting design. Notably, both direct-acting and pilot-operated versions of these valves are interchangeable, fitting the same cavities and possessing identical flow paths. However, this model is not bistable and can modulate between two positions as needed. It incorporates Sun's floating style construction, which reduces the risk of internal binding caused by excessive installation torque or machining variations. This cartridge fits into a T-2A cavity and belongs to Series 2 with a capacity of up to 15 gpm (60 L/min). Factory pressure settings are established at a flow rate of 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The valve's maximum leakage rate is specified at 2 in\u00b3/min (30 cc/min) at an oil viscosity of 110 SUS (24 cSt). The adjustment mechanism allows for increased settings through clockwise turns, with specific torque requirements for installation and locknut adjustments provided for optimal performance.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Polyurethane: 990-002-002 |
