SUN HYDRAULICS
DSCBXDV
$99.58 USD
- SUN HYDRAULICS
- Material:DSCBXDV
- Model:DSCB-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSCBXDV (DSCBXDV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component allows for efficient switching with one port blocked and two ports open, making it an ideal choice for standalone applications or to actuate larger pilot-operated or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses its set threshold, with pressure at port 3 being directly additive to the valve's setting. It is important to note that due to this characteristic, port 3 may not be suitable as a work port in certain circuit designs; if this poses a challenge, a 4-port version of this valve may be considered. The DSCBXDV features low internal leakage and minimal pilot flow consumption due to its direct-acting design. It can modulate between two positions but is not bistable. The maximum pressure at port 3 should be limited to 3000 psi (210 bar) owing to fatigue strength limitations rather than hydraulic operating constraints. Additionally, the cartridge utilizes Sun's floating style construction, which minimizes the risk of internal parts binding from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a T11A cavity size, Series 1 classification, a capacity of up to 10 gpm (40 L/min), and a recommended installation torque of 30-35 lbf ft (41-47 Nm). The valve hex size measures at 7/8 inches (22.2 mm), and it is compatible with Viton seal kits such as the model number 990011006.
The Sun Hydraulics DSCBXDV (DSCBXDV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This versatile component allows for efficient switching with one port blocked and two ports open, making it an ideal choice for standalone applications or to actuate larger pilot-operated or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses its set threshold, with pressure at port 3 being directly additive to the valve's setting. It is important to note that due to this characteristic, port 3 may not be suitable as a work port in certain circuit designs; if this poses a challenge, a 4-port version of this valve may be considered. The DSCBXDV features low internal leakage and minimal pilot flow consumption due to its direct-acting design. It can modulate between two positions but is not bistable. The maximum pressure at port 3 should be limited to 3000 psi (210 bar) owing to fatigue strength limitations rather than hydraulic operating constraints. Additionally, the cartridge utilizes Sun's floating style construction, which minimizes the risk of internal parts binding from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a T11A cavity size, Series 1 classification, a capacity of up to 10 gpm (40 L/min), and a recommended installation torque of 30-35 lbf ft (41-47 Nm). The valve hex size measures at 7/8 inches (22.2 mm), and it is compatible with Viton seal kits such as the model number 990011006.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

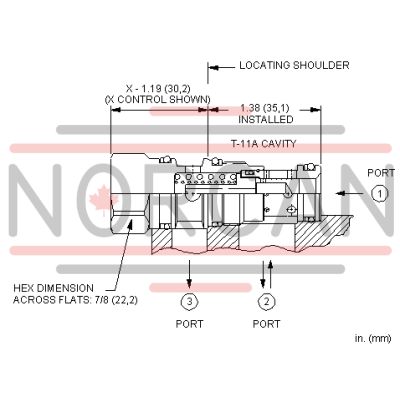

| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
