SUN HYDRAULICS
DSCBXGN
$89.65 USD
- SUN HYDRAULICS
- Material:DSCBXGN
- Model:DSCB-XGN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSCBXGN (DSCBXGN) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This valve functions as a switching device with one port blocked and allows flow between ports 2 and 3. It can be used independently or to actuate larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds its set value, with pressure at port 3 being directly additive to the valve's setting. Due to this characteristic, port 3 may not be suitable as a work port in certain circuits; in such cases, a 4-port version of the valve may be preferable. The DSCBXGN features low internal leakage and pilot flow consumption due to its direct-acting design. It is not bistable but can modulate between two positions as shown in its operational diagram. The maximum allowable pressure at port 3 is limited to 3000 psi (210 bar) due to fatigue strength limits rather than hydraulic operating limits. This cartridge incorporates Sun's floating style construction, which helps minimize potential internal part binding caused by excessive installation torque or variations in cavity/cartridge machining. Additional specifications include compatibility with cavity T11A, series 1, and a capacity of up to 10 gpm (40 L/min). The valve has a hex size of 7/8 inch (22.2 mm) and requires an installation torque of between 30 to 35 lbf-ft (41 to 47 Nm). For sealing purposes, it uses Viton seal kits with the part number 990011006.
The Sun Hydraulics DSCBXGN (DSCBXGN) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. This valve functions as a switching device with one port blocked and allows flow between ports 2 and 3. It can be used independently or to actuate larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds its set value, with pressure at port 3 being directly additive to the valve's setting. Due to this characteristic, port 3 may not be suitable as a work port in certain circuits; in such cases, a 4-port version of the valve may be preferable. The DSCBXGN features low internal leakage and pilot flow consumption due to its direct-acting design. It is not bistable but can modulate between two positions as shown in its operational diagram. The maximum allowable pressure at port 3 is limited to 3000 psi (210 bar) due to fatigue strength limits rather than hydraulic operating limits. This cartridge incorporates Sun's floating style construction, which helps minimize potential internal part binding caused by excessive installation torque or variations in cavity/cartridge machining. Additional specifications include compatibility with cavity T11A, series 1, and a capacity of up to 10 gpm (40 L/min). The valve has a hex size of 7/8 inch (22.2 mm) and requires an installation torque of between 30 to 35 lbf-ft (41 to 47 Nm). For sealing purposes, it uses Viton seal kits with the part number 990011006.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

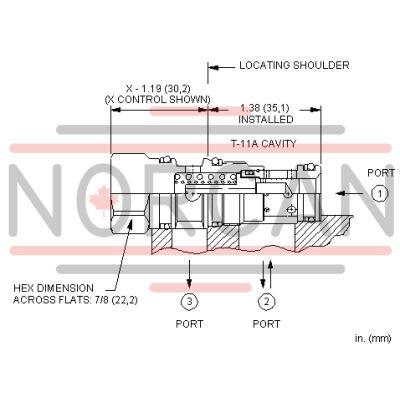

| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
