SUN HYDRAULICS
DSCLXCV
$129.37 USD
- SUN HYDRAULICS
- Material:DSCLXCV
- Model:DSCL-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSCLXCV (DSCLXCV) is a lowside hot oil shuttle cartridge designed to efficiently divert hot oil from the low pressure side of a closed loop system. This component is engineered to spring-center to an all-ports-blocked position when both work ports, 2 and 4, are at equal pressures. It connects the opposite work port to the common port, port 3, when one of the work ports experiences higher pressure. Notably, the valve fits into a four-port cavity but does not utilize nose port 1. It features Sun's floating style construction, which minimizes internal binding due to installation torque or machining variations. The DSCLXCV has a capacity of 15 gpm (60 L/min) and can operate at a maximum pressure of 5000 psi (350 bar). Its maximum valve leakage is rated at 1 in\u00b3/min at 1000 psi (15 cc/min at 70 bar). The valve hex size is 7/8 inch (22.2 mm), with an installation torque range of 30-35 lbf ft (41-47 Nm). Weighing just .40 lb (.20 kg), this model also supports a Viton seal kit with part number 990031006 for maintenance needs.
The Sun Hydraulics DSCLXCV (DSCLXCV) is a lowside hot oil shuttle cartridge designed to efficiently divert hot oil from the low pressure side of a closed loop system. This component is engineered to spring-center to an all-ports-blocked position when both work ports, 2 and 4, are at equal pressures. It connects the opposite work port to the common port, port 3, when one of the work ports experiences higher pressure. Notably, the valve fits into a four-port cavity but does not utilize nose port 1. It features Sun's floating style construction, which minimizes internal binding due to installation torque or machining variations. The DSCLXCV has a capacity of 15 gpm (60 L/min) and can operate at a maximum pressure of 5000 psi (350 bar). Its maximum valve leakage is rated at 1 in\u00b3/min at 1000 psi (15 cc/min at 70 bar). The valve hex size is 7/8 inch (22.2 mm), with an installation torque range of 30-35 lbf ft (41-47 Nm). Weighing just .40 lb (.20 kg), this model also supports a Viton seal kit with part number 990031006 for maintenance needs.
Low-side (hot oil) shuttle cartridges allow hot oil to be diverted from the low pressure side of a closed loop system. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure the opposite work port is connected to the common port (port 3).
- NOTE: Low shift values can potentially result in charge pump pressure alone inadvertently shifting the valve. Use care when selecting shift pressure.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- This valve does not have a hydraulic stop and therefore has no pilot flow. Some circuits other than hydrostatic transmissions cannot tolerate the added leakage.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

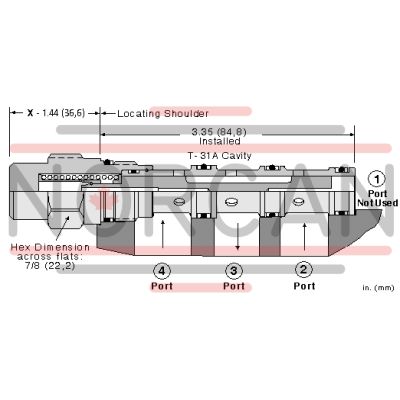

| Cavity | T-31A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 in³/min.@1000 psi15 cc/min.@70 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-031-006 |
