SUN HYDRAULICS
DSCSXCV
$132.94 USD
- SUN HYDRAULICS
- Material:DSCSXCV
- Model:DSCS-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSCSXCV (DSCSXCV) is a highside shuttle cartridge valve designed predominantly for full-time regeneration circuits. It operates by connecting the higher pressure work port, either port 2 or 4, to the common port 3, while spring-centering to an all-ports-blocked position when both work ports are at equal pressure. This valve is particularly useful for overrunning load control in regeneration applications where there is a tendency for the load to extend the cylinder. However, it should be noted that due to spool leakage, it does not prevent drift. The valve features a hardened spool-sleeve construction, ensuring excellent wear characteristics and minimizing cross leakage. Although it fits into a four-port cavity (T-31A), the nose port 1 remains unused. The Sun floating style construction of this valve minimizes potential internal part binding from excessive installation torque or variations in cavity/cartridge machining. The DSCSXCV has a capacity of 15 gpm (60 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). At 110 SUS (24 cSt), its maximum valve leakage is rated at 2 in/min at 1000 psi (30 cc/min at 70 bar). The valve hex size measures at .78 inches (22.2 mm), with an installation torque ranging between 30 to 35 lbf ft (41 to 47 Nm). Weighing .40 lbs (.20 kg), this model incorporates Viton seals with the seal kit code being 990031006.
The Sun Hydraulics DSCSXCV (DSCSXCV) is a highside shuttle cartridge valve designed predominantly for full-time regeneration circuits. It operates by connecting the higher pressure work port, either port 2 or 4, to the common port 3, while spring-centering to an all-ports-blocked position when both work ports are at equal pressure. This valve is particularly useful for overrunning load control in regeneration applications where there is a tendency for the load to extend the cylinder. However, it should be noted that due to spool leakage, it does not prevent drift. The valve features a hardened spool-sleeve construction, ensuring excellent wear characteristics and minimizing cross leakage. Although it fits into a four-port cavity (T-31A), the nose port 1 remains unused. The Sun floating style construction of this valve minimizes potential internal part binding from excessive installation torque or variations in cavity/cartridge machining. The DSCSXCV has a capacity of 15 gpm (60 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). At 110 SUS (24 cSt), its maximum valve leakage is rated at 2 in/min at 1000 psi (30 cc/min at 70 bar). The valve hex size measures at .78 inches (22.2 mm), with an installation torque ranging between 30 to 35 lbf ft (41 to 47 Nm). Weighing .40 lbs (.20 kg), this model incorporates Viton seals with the seal kit code being 990031006.
High-side shuttle cartridges are most often used in full-time regeneration circuits. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure it is connected to the common port (port 3).
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.

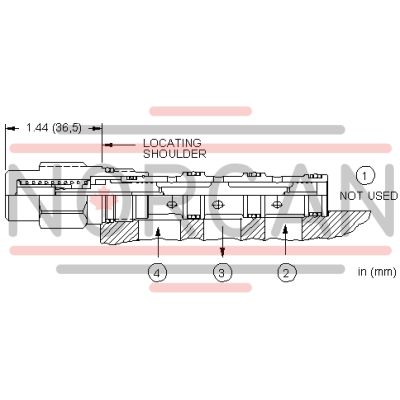

- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-31A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-031-006 |
