SUN HYDRAULICS
DSCXXCV
$129.17 USD
- SUN HYDRAULICS
- Material:DSCXXCV
- Model:DSCX-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSCXXCV (DSCXXCV) is a vent-to-shift, 2-position diverter valve designed to be normally closed. It operates by shifting when port 1 is vented and the pressure differential between port 3 and port 1 exceeds the spring force, thereby connecting port 3 with ports 2 and 4. This valve is not bistable, allowing for modulation between its two positions. The vent flow out of port 1 is pressure compensated, ensuring consistent performance as detailed in the technical data. A pressure source at port 3 relative to port 1 is required for the valve to shift effectively. One key application of this valve is in bypassing divider-combiner valves within limited-slip tractive circuits. When closed, oil must pass through the divider-combiner valves; when open, it provides a large path around these valves for efficient high-speed operation. Additionally, a single pilot valve can be used to vent multiple diverter valves if blocking checks are installed at each diverter's port 1; without these checks, interaction between high and low-pressure circuit legs may occur. The vent-to-shift function of this valve is self-cleaning, making it resistant to contamination. Its hardened spool and sleeve ensure low spool leakage rates and excellent wear characteristics. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. The DSCXXCV fits into a T-31A cavity, belongs to series 1 with a capacity of up to 15 gpm (60 L/min), and can operate at a maximum pressure of 5000 psi (350 bar). It has a nominal vent flow of .23 in\u00b3/min (.38 L/min), with a hex size of .78 inches (22.2 mm) and an installation torque requirement of 30-35 lbf ft (41-47 Nm). The model weighs .35 lb (.15 kg) and uses Viton seal kits available under part number 990031006.
The Sun Hydraulics DSCXXCV (DSCXXCV) is a vent-to-shift, 2-position diverter valve designed to be normally closed. It operates by shifting when port 1 is vented and the pressure differential between port 3 and port 1 exceeds the spring force, thereby connecting port 3 with ports 2 and 4. This valve is not bistable, allowing for modulation between its two positions. The vent flow out of port 1 is pressure compensated, ensuring consistent performance as detailed in the technical data. A pressure source at port 3 relative to port 1 is required for the valve to shift effectively. One key application of this valve is in bypassing divider-combiner valves within limited-slip tractive circuits. When closed, oil must pass through the divider-combiner valves; when open, it provides a large path around these valves for efficient high-speed operation. Additionally, a single pilot valve can be used to vent multiple diverter valves if blocking checks are installed at each diverter's port 1; without these checks, interaction between high and low-pressure circuit legs may occur. The vent-to-shift function of this valve is self-cleaning, making it resistant to contamination. Its hardened spool and sleeve ensure low spool leakage rates and excellent wear characteristics. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. The DSCXXCV fits into a T-31A cavity, belongs to series 1 with a capacity of up to 15 gpm (60 L/min), and can operate at a maximum pressure of 5000 psi (350 bar). It has a nominal vent flow of .23 in\u00b3/min (.38 L/min), with a hex size of .78 inches (22.2 mm) and an installation torque requirement of 30-35 lbf ft (41-47 Nm). The model weighs .35 lb (.15 kg) and uses Viton seal kits available under part number 990031006.

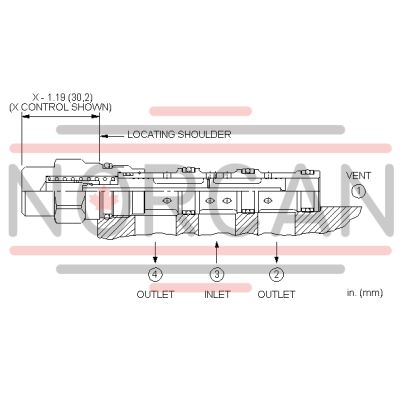

This is a vent-to-shift, 2-position, diverter valve that is normally closed. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 with ports 2 and 4.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-31A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 23 in³/min.0,38 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .35 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-031-006 |
