SUN HYDRAULICS
DSESXCV
$182.67 USD
- SUN HYDRAULICS
- Material:DSESXCV
- Model:DSES-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSESXCV (DSESXCV) is a highside shuttle cartridge designed primarily for full-time regeneration circuits. This valve is engineered to manage overrunning load control in applications where the load extends the cylinder, although it does not prevent drift due to spool leakage. Notably, when both work ports (ports 2 and 4) are at equal pressures, it centers to an all-ports-blocked position. However, when one port experiences higher pressure, it connects to the common port (port 3). The valve features hardened spool-sleeve construction for enhanced wear resistance and reduced cross leakage. It incorporates Sun's floating style construction to prevent internal binding from excessive installation torque or machining variations. While fitting into a 4-port cavity, the nose port (port 1) is unused. The DSESXCV has a capacity of 30 gpm (120 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage is rated at 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). The valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 and 50 lbf-ft (61 to 68 Nm). Weighing .70 lb (.30 kg), this model uses Viton seal kits, specifically part number 990032006.
The Sun Hydraulics DSESXCV (DSESXCV) is a highside shuttle cartridge designed primarily for full-time regeneration circuits. This valve is engineered to manage overrunning load control in applications where the load extends the cylinder, although it does not prevent drift due to spool leakage. Notably, when both work ports (ports 2 and 4) are at equal pressures, it centers to an all-ports-blocked position. However, when one port experiences higher pressure, it connects to the common port (port 3). The valve features hardened spool-sleeve construction for enhanced wear resistance and reduced cross leakage. It incorporates Sun's floating style construction to prevent internal binding from excessive installation torque or machining variations. While fitting into a 4-port cavity, the nose port (port 1) is unused. The DSESXCV has a capacity of 30 gpm (120 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage is rated at 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). The valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 and 50 lbf-ft (61 to 68 Nm). Weighing .70 lb (.30 kg), this model uses Viton seal kits, specifically part number 990032006.
High-side shuttle cartridges are most often used in full-time regeneration circuits. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure it is connected to the common port (port 3).
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.

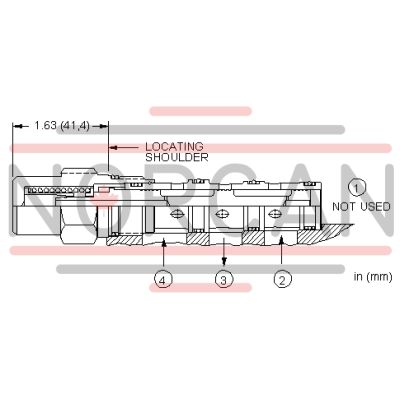

- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-32A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .70 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-032-006 |
