SUN HYDRAULICS
DSESXFV
$182.67 USD
- SUN HYDRAULICS
- Material:DSESXFV
- Model:DSES-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSESXFV (DSESXFV) is a highside shuttle cartridge valve designed for use in full-time regeneration circuits. This model is engineered to connect the higher pressure from either work port 2 or 4 to the common port 3 when one of these ports experiences increased pressure, while maintaining a spring-centered, all-ports-blocked position when both ports are at equal pressure. This feature makes it suitable for overrunning load control in regeneration applications where loads tend to extend the cylinder. However, due to spool leakage, it does not prevent drift. The DSESXFV is constructed with hardened spool and sleeve materials, offering excellent wear characteristics and minimizing cross leakage. It utilizes Sun's floating style construction to reduce the risk of internal parts binding from excessive installation torque or cavity/cartridge machining variations. Designed for a T-32A cavity, this series 2 valve has a flow capacity of 30 gpm (120 L/min) and can operate at a maximum pressure of 5000 psi (350 bar). The maximum valve leakage at 110 SUS (24 cSt) is rated at 3 in\u00b3/min (1000 psi/50 cc/min/70 bar). Installation specifications include a valve hex size of 1-1/8 inches (28.6 mm) and an installation torque requirement between 45 - 50 lbf\u00b7ft (61 - 68 Nm). The model weighs approximately .70 lb (.30 kg), and it uses Viton seals with seal kit number 990032006 available for maintenance needs.
The Sun Hydraulics DSESXFV (DSESXFV) is a highside shuttle cartridge valve designed for use in full-time regeneration circuits. This model is engineered to connect the higher pressure from either work port 2 or 4 to the common port 3 when one of these ports experiences increased pressure, while maintaining a spring-centered, all-ports-blocked position when both ports are at equal pressure. This feature makes it suitable for overrunning load control in regeneration applications where loads tend to extend the cylinder. However, due to spool leakage, it does not prevent drift. The DSESXFV is constructed with hardened spool and sleeve materials, offering excellent wear characteristics and minimizing cross leakage. It utilizes Sun's floating style construction to reduce the risk of internal parts binding from excessive installation torque or cavity/cartridge machining variations. Designed for a T-32A cavity, this series 2 valve has a flow capacity of 30 gpm (120 L/min) and can operate at a maximum pressure of 5000 psi (350 bar). The maximum valve leakage at 110 SUS (24 cSt) is rated at 3 in\u00b3/min (1000 psi/50 cc/min/70 bar). Installation specifications include a valve hex size of 1-1/8 inches (28.6 mm) and an installation torque requirement between 45 - 50 lbf\u00b7ft (61 - 68 Nm). The model weighs approximately .70 lb (.30 kg), and it uses Viton seals with seal kit number 990032006 available for maintenance needs.
High-side shuttle cartridges are most often used in full-time regeneration circuits. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure it is connected to the common port (port 3).
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.

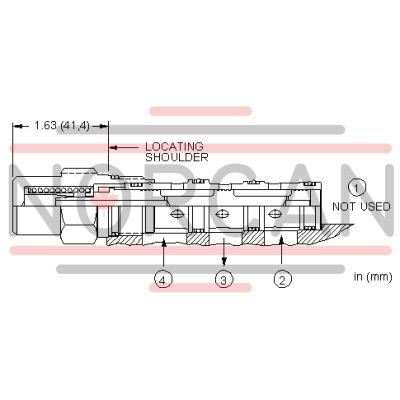

- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-32A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .70 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-032-006 |
