SUN HYDRAULICS
DSEXXCV
$169.17 USD
- SUN HYDRAULICS
- Material:DSEXXCV
- Model:DSEX-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSEXXCV (DSEXXCV) is a vent-to-shift, two-position diverter valve that is normally closed. This valve is designed to shift when port 1 is vented and the pressure differential between port 3 and port 1 surpasses the spring force, thereby connecting port 3 with ports 2 and 4. It is not bistable and can modulate between its two positions. The vent flow out of port 1 is pressure compensated, and there must be a pressure source at port 3 relative to port 1 for the valve to shift effectively. One notable application of this valve is in bypassing divider-combiner valves within limited-slip tractive circuits; when closed, oil flows through these valves, while open, it provides a large path around them for efficient high-speed operation. Multiple diverter valves can be vented using a single pilot valve if blocking checks are employed at port 1; without blocking checks, high and low-pressure circuit legs may interact. The vent-to-shift function ensures self-cleaning capabilities, making it resistant to contamination. Its hardened spool and sleeve design offer consistent low spool leakage rates and excellent wear characteristics. The valve incorporates Sun's floating style construction to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into a T-32A cavity, belongs to series 2 with a capacity of up to 30 gpm (120 L/min), and withstands a maximum operating pressure of up to 5000 psi (350 bar). The nominal vent flow rate is specified at 23 in\u00b3/min (0.38 L/min), with an installation torque requirement of 45-50 lbf ft (61-68 Nm). The model weighs approximately .70 lb (0.30 kg) and utilizes Viton seal kits under cartridge code 990032006.
The Sun Hydraulics DSEXXCV (DSEXXCV) is a vent-to-shift, two-position diverter valve that is normally closed. This valve is designed to shift when port 1 is vented and the pressure differential between port 3 and port 1 surpasses the spring force, thereby connecting port 3 with ports 2 and 4. It is not bistable and can modulate between its two positions. The vent flow out of port 1 is pressure compensated, and there must be a pressure source at port 3 relative to port 1 for the valve to shift effectively. One notable application of this valve is in bypassing divider-combiner valves within limited-slip tractive circuits; when closed, oil flows through these valves, while open, it provides a large path around them for efficient high-speed operation. Multiple diverter valves can be vented using a single pilot valve if blocking checks are employed at port 1; without blocking checks, high and low-pressure circuit legs may interact. The vent-to-shift function ensures self-cleaning capabilities, making it resistant to contamination. Its hardened spool and sleeve design offer consistent low spool leakage rates and excellent wear characteristics. The valve incorporates Sun's floating style construction to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into a T-32A cavity, belongs to series 2 with a capacity of up to 30 gpm (120 L/min), and withstands a maximum operating pressure of up to 5000 psi (350 bar). The nominal vent flow rate is specified at 23 in\u00b3/min (0.38 L/min), with an installation torque requirement of 45-50 lbf ft (61-68 Nm). The model weighs approximately .70 lb (0.30 kg) and utilizes Viton seal kits under cartridge code 990032006.

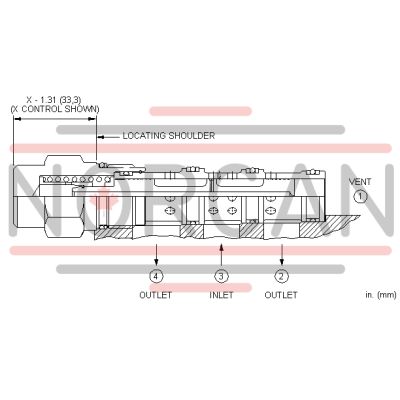

This is a vent-to-shift, 2-position, diverter valve that is normally closed. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 with ports 2 and 4.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-32A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 23 in³/min.0,38 L/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .70 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-032-006 |
