SUN HYDRAULICS
DSGHXGN
$330.61 USD
- SUN HYDRAULICS
- Material:DSGHXGN
- Model:DSGH-XGN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSGHXGN (DSGHXGN) is a lowside hot oil shuttle cartridge designed to efficiently divert hot oil from the low-pressure side of a closed-loop hydraulic system. This valve is engineered to automatically spring-center to an all-ports-blocked position when both work ports 2 and 4 are at equal pressures. When there is a pressure differential, the valve connects the lower pressure work port to the common port 3. The spool design includes a hydraulic stop, which eliminates mechanical impact, reducing the risk of internal damage and ensuring durability. This feature also allows for confirmation of the hot oil relief setting with the transmission in neutral. The valve fits into a T-33A cavity and has a capacity of 40 gpm (160 L/min) with a maximum operating pressure of 5000 psi (350 bar). It features Sun's floating style construction that minimizes binding due to excessive torque or machining variations. The cartridge requires an installation torque between 150 to 160 lbf ft (203 to 217 Nm) and weighs approximately 1.40 lb (0.65 kg). The pilot flow rate is specified at 46 in\u00b3/min (0.75 L/min), and it comes with a Viton seal kit under part number 990033006.
The Sun Hydraulics DSGHXGN (DSGHXGN) is a lowside hot oil shuttle cartridge designed to efficiently divert hot oil from the low-pressure side of a closed-loop hydraulic system. This valve is engineered to automatically spring-center to an all-ports-blocked position when both work ports 2 and 4 are at equal pressures. When there is a pressure differential, the valve connects the lower pressure work port to the common port 3. The spool design includes a hydraulic stop, which eliminates mechanical impact, reducing the risk of internal damage and ensuring durability. This feature also allows for confirmation of the hot oil relief setting with the transmission in neutral. The valve fits into a T-33A cavity and has a capacity of 40 gpm (160 L/min) with a maximum operating pressure of 5000 psi (350 bar). It features Sun's floating style construction that minimizes binding due to excessive torque or machining variations. The cartridge requires an installation torque between 150 to 160 lbf ft (203 to 217 Nm) and weighs approximately 1.40 lb (0.65 kg). The pilot flow rate is specified at 46 in\u00b3/min (0.75 L/min), and it comes with a Viton seal kit under part number 990033006.

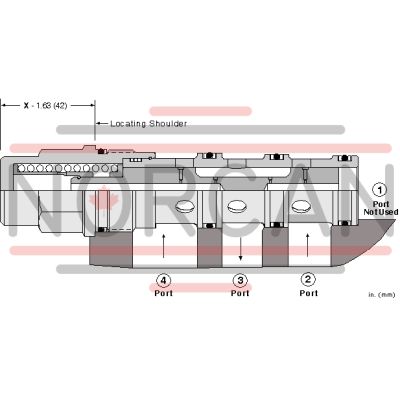

Low-side (hot oil) shuttle cartridges allow hot oil to be diverted from the low pressure side of a closed loop system. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure the opposite work port is connected to the common port (port 3).
- The spool incorporates a hydraulic stop that eliminates mechanical impact and therefore the potential for internal damage.
- The hydraulic stop results in a small pilot flow from the high side work port (port 2 or 4) to the common port (port 3).
- A unique feature due to the hydraulic stop is that the hot oil relief setting can be confirmed with the transmission in neutral.
- NOTE: Low shift values can potentially result in charge pump pressure alone inadvertently shifting the valve. Use care when selecting shift pressure.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Pilot Flow | 46 in³/min.0,75 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
