SUN HYDRAULICS
DSGSXCN
$312.44 USD
- SUN HYDRAULICS
- Material:DSGSXCN
- Model:DSGS-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSGSXCN (DSGSXCN) is a highside shuttle cartridge valve designed primarily for use in full-time regeneration circuits. This valve is particularly effective in applications requiring overrunning load control where the load tends to extend the cylinder. It features hardened spool and sleeve construction, which ensures excellent wear characteristics and minimizes cross leakage, although it does not prevent drift due to spool leakage. The DSGSXCN operates within a 4-port cavity (T-33A), with port 1 not utilized, and incorporates Sun's floating style construction to reduce the risk of internal parts binding from excessive installation torque or machining variations. With a capacity of 60 gpm (240 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve is robust enough for demanding applications. The maximum valve leakage at 110 SUS (24 cSt) is rated at 4 in/min (65 cc/min) at 1000 psi (70 bar). Installation requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf ft (203 - 217 Nm). Weighing in at approximately 1.40 lb (0.65 kg), this model also comes with an optional Viton seal kit, part number 990033006, for enhanced durability in various environments.
The Sun Hydraulics DSGSXCN (DSGSXCN) is a highside shuttle cartridge valve designed primarily for use in full-time regeneration circuits. This valve is particularly effective in applications requiring overrunning load control where the load tends to extend the cylinder. It features hardened spool and sleeve construction, which ensures excellent wear characteristics and minimizes cross leakage, although it does not prevent drift due to spool leakage. The DSGSXCN operates within a 4-port cavity (T-33A), with port 1 not utilized, and incorporates Sun's floating style construction to reduce the risk of internal parts binding from excessive installation torque or machining variations. With a capacity of 60 gpm (240 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve is robust enough for demanding applications. The maximum valve leakage at 110 SUS (24 cSt) is rated at 4 in/min (65 cc/min) at 1000 psi (70 bar). Installation requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf ft (203 - 217 Nm). Weighing in at approximately 1.40 lb (0.65 kg), this model also comes with an optional Viton seal kit, part number 990033006, for enhanced durability in various environments.
High-side shuttle cartridges are most often used in full-time regeneration circuits. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure it is connected to the common port (port 3).
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.

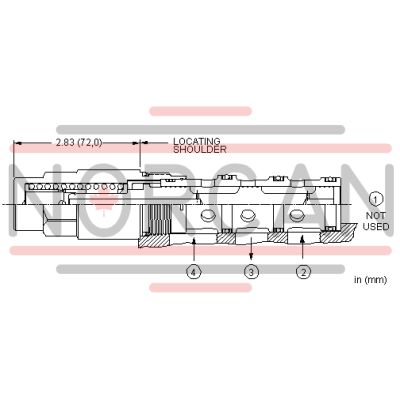

- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
