SUN HYDRAULICS
DSGXXCN
$280.66 USD
- SUN HYDRAULICS
- Material:DSGXXCN
- Model:DSGX-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSGXXCN (DSGXXCN) is a vent-to-shift, 2-position diverter valve designed to be normally closed. It operates by shifting when port 1 is vented, and the pressure differential between port 3 and port 1 exceeds the spring force, thereby connecting port 3 with ports 2 and 4. This valve is not bistable, allowing it to modulate between two positions effectively. The vent flow out of port 1 is pressure compensated, ensuring consistent performance as detailed in the technical data. For operation, a pressure source at port 3 relative to port 1 is required. A key application for the DSGXXCN valve is in bypassing divider-combiner valves within limited-slip tractive circuits. When closed, oil must pass through the divider-combiner valves; when open, it provides a large path around these valves for efficient high-speed operation. Additionally, one pilot valve can be used to vent multiple diverter valves if blocking checks are installed at port 1 of each diverter; otherwise, interaction may occur between high and low-pressure circuit legs. The valve's vent-to-shift function is self-cleaning and resistant to contamination. It features a hardened spool and sleeve that deliver consistent low spool leakage rates and excellent wear characteristics. The Sun floating style construction minimizes the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The DSGXXCN fits into a T-33A cavity and belongs to Series 3 with a capacity of up to 60 gpm (240 L/min) and can operate at a maximum pressure of 5000 psi (350 bar). Its nominal vent flow rate is approximately 35 in\u00b3/min (0.60 L/min). The valve measures with a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 -160 lbf ft (203 -217 Nm). The model weighs approximately 4.40 lb (2.00 kg), and its Viton seal kit part number is 990033006.
The Sun Hydraulics DSGXXCN (DSGXXCN) is a vent-to-shift, 2-position diverter valve designed to be normally closed. It operates by shifting when port 1 is vented, and the pressure differential between port 3 and port 1 exceeds the spring force, thereby connecting port 3 with ports 2 and 4. This valve is not bistable, allowing it to modulate between two positions effectively. The vent flow out of port 1 is pressure compensated, ensuring consistent performance as detailed in the technical data. For operation, a pressure source at port 3 relative to port 1 is required. A key application for the DSGXXCN valve is in bypassing divider-combiner valves within limited-slip tractive circuits. When closed, oil must pass through the divider-combiner valves; when open, it provides a large path around these valves for efficient high-speed operation. Additionally, one pilot valve can be used to vent multiple diverter valves if blocking checks are installed at port 1 of each diverter; otherwise, interaction may occur between high and low-pressure circuit legs. The valve's vent-to-shift function is self-cleaning and resistant to contamination. It features a hardened spool and sleeve that deliver consistent low spool leakage rates and excellent wear characteristics. The Sun floating style construction minimizes the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The DSGXXCN fits into a T-33A cavity and belongs to Series 3 with a capacity of up to 60 gpm (240 L/min) and can operate at a maximum pressure of 5000 psi (350 bar). Its nominal vent flow rate is approximately 35 in\u00b3/min (0.60 L/min). The valve measures with a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 -160 lbf ft (203 -217 Nm). The model weighs approximately 4.40 lb (2.00 kg), and its Viton seal kit part number is 990033006.

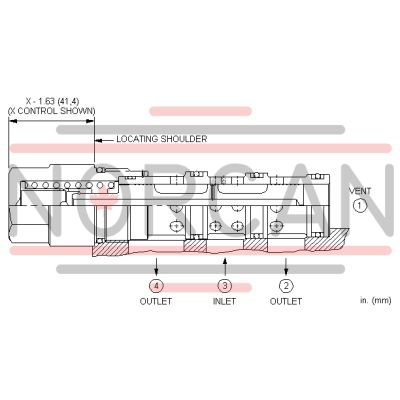

This is a vent-to-shift, 2-position, diverter valve that is normally closed. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 with ports 2 and 4.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 35 in³/min.0,60 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 4.40 lb2,00 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
