The Sun Hydraulics DSGXXCV (DSGXXCV) is a vent-to-shift, 2-position diverter valve designed to be normally closed. It operates by venting port 1, which causes the pressure differential between port 3 and port 1 to exceed the spring force, thereby shifting the valve to connect port 3 with ports 2 and 4. This valve is not bistable and can modulate between two positions. The vent flow out of port 1 is pressure compensated. A pressure source at port 3 relative to port 1 is necessary for shifting the valve. This diverter valve is particularly useful in bypassing divider-combiner valves within limited-slip tractive circuits, providing an efficient high-speed operation when open by creating a large path around these valves. It can also be used with a single pilot valve to vent multiple diverter valves if blocking checks are incorporated at each diverter's port 1; otherwise, interaction between high and low-pressure legs may occur. The self-cleaning vent-to-shift function ensures insensitivity to contamination, while the hardened spool and sleeve offer consistent low spool leakage rates and excellent wear characteristics. The Sun floating style construction minimizes internal part binding due to excessive installation torque or cavity/cartridge machining variations. The DSGXXCV features a T33A cavity, Series 3 design with a capacity of up to 60 gpm (240 L/min) and can operate under a maximum pressure of 5000 psi (350 bar). It has a nominal vent flow rate of 35 in\u00b3/min (0.60 L/min), with dimensions including a hex size of 1\u00bc inches (31.8 mm) and installation torque between 150-160 lbf ft (203-217 Nm). The model weighs approximately 4.40 lb (2 kg) and uses Viton seal kits for the cartridge (990033006).
The Sun Hydraulics DSGXXCV (DSGXXCV) is a vent-to-shift, 2-position diverter valve designed to be normally closed. It operates by venting port 1, which causes the pressure differential between port 3 and port 1 to exceed the spring force, thereby shifting the valve to connect port 3 with ports 2 and 4. This valve is not bistable and can modulate between two positions. The vent flow out of port 1 is pressure compensated. A pressure source at port 3 relative to port 1 is necessary for shifting the valve. This diverter valve is particularly useful in bypassing divider-combiner valves within limited-slip tractive circuits, providing an efficient high-speed operation when open by creating a large path around these valves. It can also be used with a single pilot valve to vent multiple diverter valves if blocking checks are incorporated at each diverter's port 1; otherwise, interaction between high and low-pressure legs may occur. The self-cleaning vent-to-shift function ensures insensitivity to contamination, while the hardened spool and sleeve offer consistent low spool leakage rates and excellent wear characteristics. The Sun floating style construction minimizes internal part binding due to excessive installation torque or cavity/cartridge machining variations. The DSGXXCV features a T33A cavity, Series 3 design with a capacity of up to 60 gpm (240 L/min) and can operate under a maximum pressure of 5000 psi (350 bar). It has a nominal vent flow rate of 35 in\u00b3/min (0.60 L/min), with dimensions including a hex size of 1\u00bc inches (31.8 mm) and installation torque between 150-160 lbf ft (203-217 Nm). The model weighs approximately 4.40 lb (2 kg) and uses Viton seal kits for the cartridge (990033006).

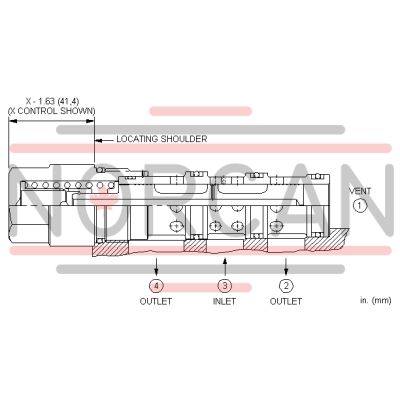

This is a vent-to-shift, 2-position, diverter valve that is normally closed. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 with ports 2 and 4.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 35 in³/min.0,60 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 4.40 lb2,00 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
