SUN HYDRAULICS
DSGXXDV
$287.61 USD
- SUN HYDRAULICS
- Material:DSGXXDV
- Model:DSGX-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSGXXDV (DSGXXDV) is a vent-to-shift, 2-position diverter valve that is normally closed. It operates by shifting when the pressure differential between port 3 and port 1 surpasses the spring force, connecting port 3 with ports 2 and 4. This valve is not bistable, allowing it to modulate between the two shown positions. The vent flow out of port 1 is pressure compensated, ensuring stable operation. A pressure source at port 3 relative to port 1 is necessary for shifting the valve. One of its applications includes bypassing divider-combiner valves in limited-slip tractive circuits, providing an efficient high-speed operation path when open. The valve's self-cleaning vent-to-shift function makes it insensitive to contamination, and the hardened spool and sleeve ensure low leakage rates and excellent wear characteristics. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. It fits into a T-33A cavity, belongs to series 3, and has a capacity of up to 60 gpm (240 L/min) with a maximum operating pressure of 5000 psi (350 bar). The nominal vent flow is rated at 35 in\u00b3/min (0.60 L/min), with a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150 -160 lbf ft (203 -217 Nm). The model weighs approximately 4.40 lb (2.00 kg) and uses a Viton seal kit cartridge identified by part number 990033006 for maintenance or replacement needs.
The Sun Hydraulics DSGXXDV (DSGXXDV) is a vent-to-shift, 2-position diverter valve that is normally closed. It operates by shifting when the pressure differential between port 3 and port 1 surpasses the spring force, connecting port 3 with ports 2 and 4. This valve is not bistable, allowing it to modulate between the two shown positions. The vent flow out of port 1 is pressure compensated, ensuring stable operation. A pressure source at port 3 relative to port 1 is necessary for shifting the valve. One of its applications includes bypassing divider-combiner valves in limited-slip tractive circuits, providing an efficient high-speed operation path when open. The valve's self-cleaning vent-to-shift function makes it insensitive to contamination, and the hardened spool and sleeve ensure low leakage rates and excellent wear characteristics. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. It fits into a T-33A cavity, belongs to series 3, and has a capacity of up to 60 gpm (240 L/min) with a maximum operating pressure of 5000 psi (350 bar). The nominal vent flow is rated at 35 in\u00b3/min (0.60 L/min), with a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150 -160 lbf ft (203 -217 Nm). The model weighs approximately 4.40 lb (2.00 kg) and uses a Viton seal kit cartridge identified by part number 990033006 for maintenance or replacement needs.

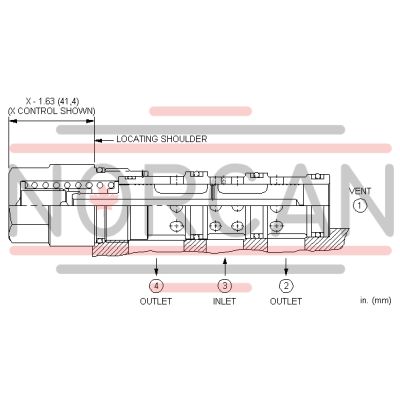

This is a vent-to-shift, 2-position, diverter valve that is normally closed. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 with ports 2 and 4.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 35 in³/min.0,60 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 4.40 lb2,00 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
