SUN HYDRAULICS
DSGYXCN
$280.66 USD
- SUN HYDRAULICS
- Material:DSGYXCN
- Model:DSGY-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSGYXCN (DSGYXCN) is a vent-to-shift diverter valve designed as a 2-position, 3-way cartridge that operates normally open from port 3 to port 4. When the valve is vented at port 1, and the pressure differential between port 3 and port 1 surpasses the spring force, it shifts to connect port 3 to port 2. This valve is not bistable and can modulate between its two positions. It requires a pressure source at port 3 relative to port 1 for operation. A common application involves using pairs of these valves to select between two motors or pumps. If blocking checks are used at each diverter's port 1, a single pilot valve can vent multiple diverter valves without interaction between high and low-pressure legs of the circuit. The vent-to-shift function is self-cleaning and resistant to contamination. The hardened spool and sleeve ensure consistent low spool leakage rates and excellent wear characteristics. It features Sun's floating style construction, minimizing internal part binding due to installation torque or machining variations in cavity/cartridge setups. The valve fits into a T-33A cavity with a series number of 3, supporting a capacity of up to 60 gpm (240 L/min) and a maximum operating pressure of 5000 psi (350 bar). The nominal vent flow rate is specified at 35 in\u00b3/min (0.60 L/min). Installation requires a hex size of 1\u00bc inches (31.8 mm) with an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). The model weighs approximately 1.40 lb (0.65 kg) and utilizes Viton seal kits with part number 990033006 for maintenance or replacement needs.
The Sun Hydraulics DSGYXCN (DSGYXCN) is a vent-to-shift diverter valve designed as a 2-position, 3-way cartridge that operates normally open from port 3 to port 4. When the valve is vented at port 1, and the pressure differential between port 3 and port 1 surpasses the spring force, it shifts to connect port 3 to port 2. This valve is not bistable and can modulate between its two positions. It requires a pressure source at port 3 relative to port 1 for operation. A common application involves using pairs of these valves to select between two motors or pumps. If blocking checks are used at each diverter's port 1, a single pilot valve can vent multiple diverter valves without interaction between high and low-pressure legs of the circuit. The vent-to-shift function is self-cleaning and resistant to contamination. The hardened spool and sleeve ensure consistent low spool leakage rates and excellent wear characteristics. It features Sun's floating style construction, minimizing internal part binding due to installation torque or machining variations in cavity/cartridge setups. The valve fits into a T-33A cavity with a series number of 3, supporting a capacity of up to 60 gpm (240 L/min) and a maximum operating pressure of 5000 psi (350 bar). The nominal vent flow rate is specified at 35 in\u00b3/min (0.60 L/min). Installation requires a hex size of 1\u00bc inches (31.8 mm) with an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). The model weighs approximately 1.40 lb (0.65 kg) and utilizes Viton seal kits with part number 990033006 for maintenance or replacement needs.

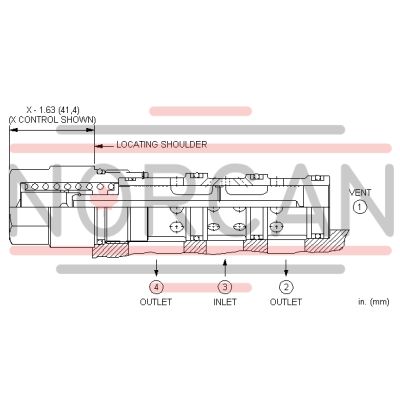

This vent-to-shift diverter valve is a 2-position, 3-way cartridge that is normally open from port 3 to port 4. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 to port 2.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to be used in pairs to select between 2 motors or pumps.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 35 in³/min.0,60 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
