SUN HYDRAULICS
DSIOXEV
$608.89 USD
- SUN HYDRAULICS
- Material:DSIOXEV
- Model:DSIO-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSIOXEV (DSIOXEV) is a spring-offset, high-side shuttle cartridge valve designed for efficient fluid control in hydraulic systems. This 2-position valve features a normal offset position that connects the common port (port 3) to work port 4 while blocking work port 2. The valve shifts when the pressure at port 2 exceeds that at port 4, reversing the connections to link the common port to port 2 and block port 4. Although it fits into a 4-port cavity, the nose port (port 1) remains unused. It employs Sun's floating style construction to minimize potential binding of internal components due to excessive installation torque or variations in cavity and cartridge machining. The DSIOXEV is built for the T-34A cavity and belongs to Series 4, with a capacity of up to 120 gpm (480 L/min) and a maximum operating pressure of 5000 psi (350 bar). The valve's hex size measures 1-5/8 inches (41.3 mm), and it requires an installation torque ranging from 350 to 375 lbf ft (475 to 508 Nm). Weighing in at approximately 2.90 lb (1.30 kg), this model is compatible with Viton seal kits under cartridge number 990034006. Ideal for applications requiring reliable pressure management, this direct-acting valve type offers fast response times, dirt tolerance, stability, and robustness in operation.
The Sun Hydraulics DSIOXEV (DSIOXEV) is a spring-offset, high-side shuttle cartridge valve designed for efficient fluid control in hydraulic systems. This 2-position valve features a normal offset position that connects the common port (port 3) to work port 4 while blocking work port 2. The valve shifts when the pressure at port 2 exceeds that at port 4, reversing the connections to link the common port to port 2 and block port 4. Although it fits into a 4-port cavity, the nose port (port 1) remains unused. It employs Sun's floating style construction to minimize potential binding of internal components due to excessive installation torque or variations in cavity and cartridge machining. The DSIOXEV is built for the T-34A cavity and belongs to Series 4, with a capacity of up to 120 gpm (480 L/min) and a maximum operating pressure of 5000 psi (350 bar). The valve's hex size measures 1-5/8 inches (41.3 mm), and it requires an installation torque ranging from 350 to 375 lbf ft (475 to 508 Nm). Weighing in at approximately 2.90 lb (1.30 kg), this model is compatible with Viton seal kits under cartridge number 990034006. Ideal for applications requiring reliable pressure management, this direct-acting valve type offers fast response times, dirt tolerance, stability, and robustness in operation.

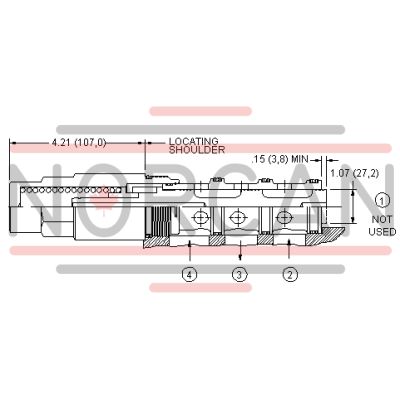

Spring-offset, high-side shuttle cartridges are 2-position valves that have a normal (offset) position that connects the common port (port 3) to work port 4, with work port 2 blocked. When the pressure at port 2 rises above the pressure at port 4, the cartridge shifts to connect the common port to port 2 with port 4 then blocked.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-34A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft475 - 508 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-034-006 |
