SUN HYDRAULICS
DSIXXDN
$558.35 USD
- SUN HYDRAULICS
- Material:DSIXXDN
- Model:DSIX-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSIXXDN (DSIXXDN) is a vent-to-shift, 2-position diverter valve that is normally closed. It operates by venting port 1, which causes the pressure differential between port 3 and port 1 to exceed the spring force, thereby shifting the valve to connect port 3 with ports 2 and 4. This valve is not bistable and can modulate between two positions. It features pressure-compensated vent flow out of port 1, requiring a pressure source at port 3 relative to port 1 for operation. A key application of this valve is in bypassing divider-combiner valves within a limited-slip tractive circuit; when closed, oil flows through the divider-combiner valves, while open provides a large path around them for efficient high-speed operation. Multiple diverter valves can be vented using one pilot valve if blocking checks are utilized at each diverter's port 1 to prevent interaction between high and low-pressure legs of the circuit. The vent-to-shift function is self-cleaning and insensitive to contamination, with hardened spool and sleeve ensuring consistent low leakage rates and excellent wear characteristics. The design incorporates Sun's floating style construction to minimize internal binding due to excessive installation torque or machining variations in cavity/cartridge. This model fits into a T-34A cavity, part of Series 4, with a capacity of up to 120 gpm (480 L/min) and maximum operating pressure of 5000 psi (350 bar). The nominal vent flow rate is specified as 35 in\u00b3/min (0.60 L/min), with installation requiring a torque between 350 - 375 lbf ft (475 - 508 Nm). The DSIXXDN model weighs approximately 3.30 lb (1.50 kg) and uses Viton seal kit number: 990034006 for cartridge sealing requirements.
The Sun Hydraulics DSIXXDN (DSIXXDN) is a vent-to-shift, 2-position diverter valve that is normally closed. It operates by venting port 1, which causes the pressure differential between port 3 and port 1 to exceed the spring force, thereby shifting the valve to connect port 3 with ports 2 and 4. This valve is not bistable and can modulate between two positions. It features pressure-compensated vent flow out of port 1, requiring a pressure source at port 3 relative to port 1 for operation. A key application of this valve is in bypassing divider-combiner valves within a limited-slip tractive circuit; when closed, oil flows through the divider-combiner valves, while open provides a large path around them for efficient high-speed operation. Multiple diverter valves can be vented using one pilot valve if blocking checks are utilized at each diverter's port 1 to prevent interaction between high and low-pressure legs of the circuit. The vent-to-shift function is self-cleaning and insensitive to contamination, with hardened spool and sleeve ensuring consistent low leakage rates and excellent wear characteristics. The design incorporates Sun's floating style construction to minimize internal binding due to excessive installation torque or machining variations in cavity/cartridge. This model fits into a T-34A cavity, part of Series 4, with a capacity of up to 120 gpm (480 L/min) and maximum operating pressure of 5000 psi (350 bar). The nominal vent flow rate is specified as 35 in\u00b3/min (0.60 L/min), with installation requiring a torque between 350 - 375 lbf ft (475 - 508 Nm). The DSIXXDN model weighs approximately 3.30 lb (1.50 kg) and uses Viton seal kit number: 990034006 for cartridge sealing requirements.

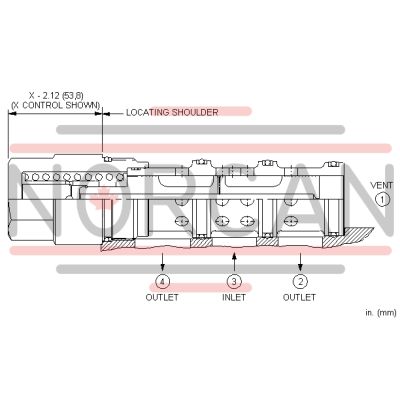

This is a vent-to-shift, 2-position, diverter valve that is normally closed. When port 1 is vented, the pressure differential between port 3 and port 1 exceeds the spring force causing the valve to shift, thereby connecting port 3 with ports 2 and 4.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-34A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 35 in³/min.0,60 L/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft475 - 508 Nm |
| Model Weight | 3.30 lb1,50 kg |
| Seal kit - Cartridge | Viton: 990-034-006 |
