SUN HYDRAULICS
DTCMLCV
$160.04 USD
- SUN HYDRAULICS
- Material:DTCMLCV
- Model:DTCM-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

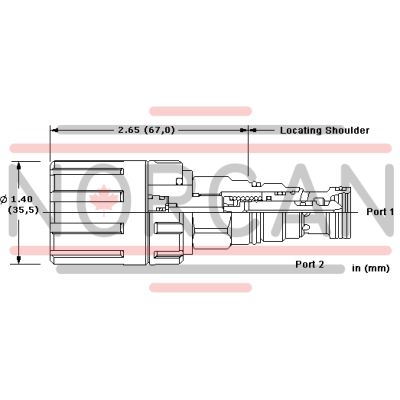

The Sun Hydraulics DTCMLCV (DTCMLCV) is a manually operated, 2-position, 2-way directional cartridge valve designed for controlling flow direction in hydraulic circuits. This direct-acting, poppet-style valve is available only in a normally closed configuration and features Sun's TwistLock manual override mechanism, intended for intermittent and infrequent use. The valve's poppet-style construction ensures extremely low leakage rates, making it suitable for load holding applications. It incorporates a combination seat-spool design that enhances sealing integrity and employs Sun's floating style construction to minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The DTCMLCV offers several control options: the momentary-twist control (T), which allows temporary shifting by twisting the knob clockwise; the detent-lock control (L), which enables mechanically detented positioning by twisting counterclockwise; and the dual-operation control (D), providing both momentary and detented shifting capabilities. Notably, the detented position is not meant for load holding but rather for temporary shifting. This valve operates with a mechanical life expectancy of approximately 7,000 cycles. It has an operating torque of 10 lbf\u00b7in (1.2 Nm) and can handle a maximum operating pressure of 5000 psi (350 bar). The DTCMLCV fits into a T-13A cavity with a series designation of 1 and has a capacity of up to 6 gpm (23 L/min). The valve exhibits maximum leakage at less than 10 drops/min under full pressure conditions. It requires Viton seal kits for maintenance and should be installed with an appropriate torque range of 30\u201335 lbf\u00b7ft (41\u201347 Nm).
The Sun Hydraulics DTCMLCV (DTCMLCV) is a manually operated, 2-position, 2-way directional cartridge valve designed for controlling flow direction in hydraulic circuits. This direct-acting, poppet-style valve is available only in a normally closed configuration and features Sun's TwistLock manual override mechanism, intended for intermittent and infrequent use. The valve's poppet-style construction ensures extremely low leakage rates, making it suitable for load holding applications. It incorporates a combination seat-spool design that enhances sealing integrity and employs Sun's floating style construction to minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The DTCMLCV offers several control options: the momentary-twist control (T), which allows temporary shifting by twisting the knob clockwise; the detent-lock control (L), which enables mechanically detented positioning by twisting counterclockwise; and the dual-operation control (D), providing both momentary and detented shifting capabilities. Notably, the detented position is not meant for load holding but rather for temporary shifting. This valve operates with a mechanical life expectancy of approximately 7,000 cycles. It has an operating torque of 10 lbf\u00b7in (1.2 Nm) and can handle a maximum operating pressure of 5000 psi (350 bar). The DTCMLCV fits into a T-13A cavity with a series designation of 1 and has a capacity of up to 6 gpm (23 L/min). The valve exhibits maximum leakage at less than 10 drops/min under full pressure conditions. It requires Viton seal kits for maintenance and should be installed with an appropriate torque range of 30\u201335 lbf\u00b7ft (41\u201347 Nm).
This manually operated, 2-position, 2-way directional cartridge is a direct-acting, poppet-style valve used to control the direction of flow in a hydraulic circuit. The valve is only available in a normally closed configuration. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only. Due to the poppet-style construction, this valve has extremely low leakage.
Many poppet style directional valves pass a small amount of fluid when the pressure across them changes suddenly. This is due to the compressibility of the fluid. This valve has been designed to prevent this from happening.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @350 bar).
- This valve is suitable for load holding applications. The detent mechanism in the manual override is meant for temporary actuation only.
- Provides a combination seat/spool design for increased sealing integrity.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-413-006 |
