SUN HYDRAULICS
DWDMTAN
$177.61 USD
- SUN HYDRAULICS
- Material:DWDMTAN
- Model:DWDM-TAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DWDMTAN (DWDMTAN) is a manually operated, 2-position, 3-way directional cartridge valve designed for controlling the direction of flow in hydraulic circuits. This direct-acting, poppet-style valve is normally open between port 1 and port 2, with port 3 blocked. When operated, it connects port 2 to port 3 and blocks port 1. The valve's bidirectional flow paths and blocked paths are effective in both directions, ensuring minimal leakage due to its poppet construction. It features Sun's TwistLock manual override mechanism for manual operation, intended for intermittent use only. The mechanical life expectancy of the manual control assembly is approximately 7,000 cycles. This valve offers several control options: the momentary-twist control option (T) allows temporary shifting by twisting the knob clockwise; the detent-lock control option (L) maintains a mechanically detented position until manually reset; and the dual-operation control option (D) combines both momentary shifting and detent positioning capabilities. It is important to note that the detented position is not suitable for load-holding applications but rather for temporary shifts. The DWDMTAN valve has a capacity of 7.5 gpm (30 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar). Its leakage rate is exceptionally low, at less than 10 drops per minute under maximum pressure conditions. The valve incorporates Sun's floating style construction to reduce internal part binding due to excessive installation torque or machining variations in cavity/cartridge configurations. This robust design ensures reliable performance in various hydraulic applications while maintaining its integrity over time through proper manual operation without mechanical modifications or external devices.
The Sun Hydraulics DWDMTAN (DWDMTAN) is a manually operated, 2-position, 3-way directional cartridge valve designed for controlling the direction of flow in hydraulic circuits. This direct-acting, poppet-style valve is normally open between port 1 and port 2, with port 3 blocked. When operated, it connects port 2 to port 3 and blocks port 1. The valve's bidirectional flow paths and blocked paths are effective in both directions, ensuring minimal leakage due to its poppet construction. It features Sun's TwistLock manual override mechanism for manual operation, intended for intermittent use only. The mechanical life expectancy of the manual control assembly is approximately 7,000 cycles. This valve offers several control options: the momentary-twist control option (T) allows temporary shifting by twisting the knob clockwise; the detent-lock control option (L) maintains a mechanically detented position until manually reset; and the dual-operation control option (D) combines both momentary shifting and detent positioning capabilities. It is important to note that the detented position is not suitable for load-holding applications but rather for temporary shifts. The DWDMTAN valve has a capacity of 7.5 gpm (30 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar). Its leakage rate is exceptionally low, at less than 10 drops per minute under maximum pressure conditions. The valve incorporates Sun's floating style construction to reduce internal part binding due to excessive installation torque or machining variations in cavity/cartridge configurations. This robust design ensures reliable performance in various hydraulic applications while maintaining its integrity over time through proper manual operation without mechanical modifications or external devices.
This manually operated, 2-position, 3-way directional cartridge is a direct-acting, poppet-style valve used to control the direction of flow in a hydraulic circuit. The valve is normally open between port 1 and port 2 with port 3 blocked. Operating the valve connects port 2 to 3 and blocks port 1. All flow paths are bidirectional and blocked paths are blocked in both directions. Due to the poppet style construction, this valve has extremely low leakage.
Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise. Please note that the detented position is not intended for load holding applications but for temporary shifting only.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @350 bar).
- This valve is suitable for load holding on port 3 only. The detent mechanism in the manual override is meant for temporary actuation.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

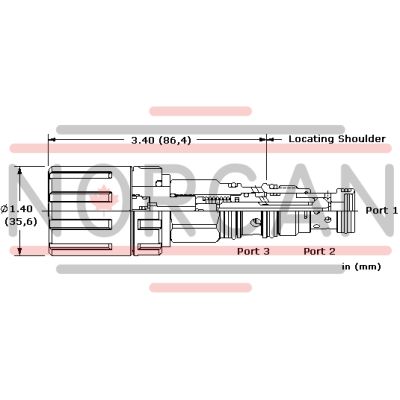

| Cavity | T-11A |
| Series | 1 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-411-006 |
