SUN HYDRAULICS
EDB

$48.65 USD

SUN HYDRAULICS
Material:EDB
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

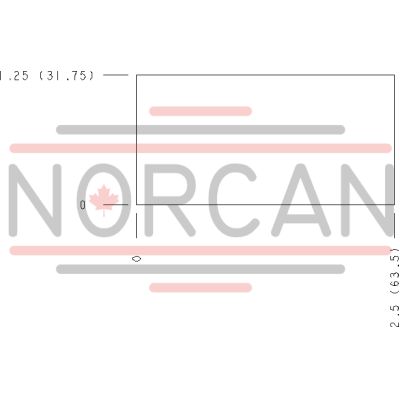

The Sun Hydraulics EDB (Material Number: EDB) is a line mount manifold designed to facilitate hydraulic system integration. This component features a body type that allows for line mounting with no specific interface, making it versatile for various applications. It includes ports where port 3 is connected to port 2, offering a straightforward flow path within the system. The manifold is equipped with two mounting holes, each with a diameter of 0.34 inches (8.6 mm) and designed for through-hole mounting, ensuring secure and stable installation. The manifold body accommodates one open cavity (T-11A) and uses 3/8 NPTF port sizes, which are standard in many hydraulic systems for reliable connections. Constructed from 6061-T651 aluminum, the EDB manifold is known for its excellent corrosion resistance and strength, although it is not anodized due to considerations such as cost, logistics, and potential impacts on fatigue life. This manifold is most suitable for systems not exceeding pressures of 3000 psi (210 bar), as aluminum manifolds are not rated beyond this threshold regardless of port size or type. Its design supports high-flow valves and can be integrated into complex hydraulic circuits using tools like Sun's QuickDesign with SmartConnect. This product offers robust performance in applications where reliable fluid control and distribution are necessary within the specified pressure limits.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Port 3 connected to port 2Port 3 connected to port 2
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-11A
Port Size	3/8" NPTF3/8" NPTF

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
